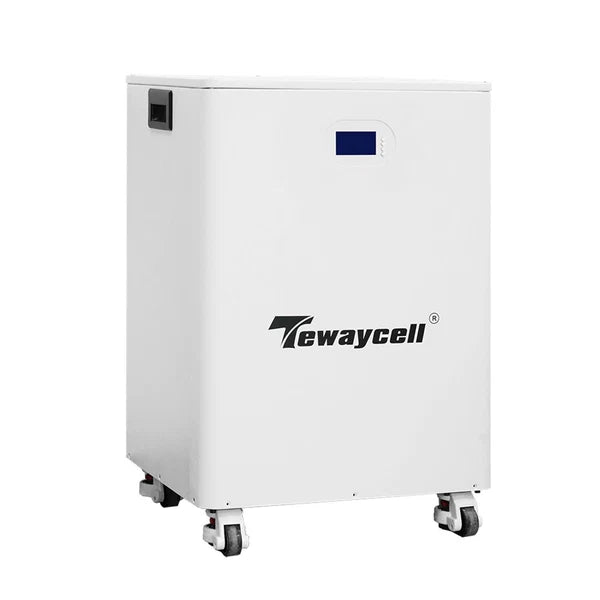

Tewaycell 48V 400Ah 20KWh LiFePO4 Mobile ESS With Active Balancer

Tewaycell 48V 400Ah 20KWh LiFePO4 Mobile ESS With Active Balancer

€2.659,95
€2.659,95
Sale Sold out
Shipping calculated at checkout.
Model
Output Power
Ship From

Free Shipping & TAX

Our current price is the final price, free shipping and tax, you don't need to pay any other fees.

【Energy Expansion】: Tewaycell 20KWh lifepo4 battery supports parallel connection to expand capacity

【Usage】: Tewaycell 20KWh lifepo4 mobile energy storage battery perfect for solar home systems, power outages, off-grid living.

【Feature】: Tewaycell 48V 400Ah 20KWh lithium battery built-in active balancer module and lifepo4 temperature-sensitive fire extinguisher. But only models shipped from China come with equalization modules

Project
Model TW-MB51600-
300A-HWB		 TW-MB51400-
300A-HWB 		TW-MB51600-
200A-HWB		 TW-MB51400-
200A-HWB
Nominal
 capacity		 600AH 400AH 600AH 400AH
Nominal
 voltage		 51.2V
Charging
 voltage		 56.8-57.6V
Operating
 voltage		 43.2V~58.4V
Standard
 Charging
 current		 0.2C
Standard
 charging mode		 At a temperature of 25℃,charge to 58.4V with a constant current of
0.2C5A,and then change continuously with a constant voltage of 58.4V
until the current is not greater than 0.02C5A.
Max.
 charging
 current		 300A 200A
Max.
 discharge
 current		 300A 200A
Max.output power 15000W 10000W
Charging
 temperature		 0℃to 45℃(32F to113°F)@60±25%relative humidity
Discharge
 temperature		 -20℃to60℃(-4°F to 140°F)@60±25%relative humidity
Storage
 temperature		 -20℃to60℃(-4°F to 140°F)@60±25%relative humidity
Line joint 350A Self-Locking Fitting Quick
Release Connector		 250A Self-Locking Fitting Quick
Release Connector
Net Weight
 Approx.		 238KG 192.5KG
Communication

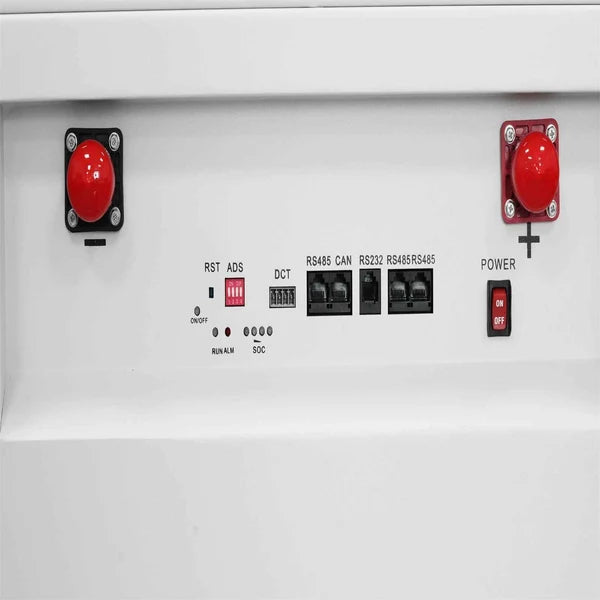

 protocol		 RS485、RS232、CAN、WiFi RS485、RS232、CAN
Suppot
 inverter brand		 Growatt、Deye、Goodwe、voltronic、Sofar、VICTRON、
Megarevo、SRNE、PYLON、Luxpowertek、Sorotec、SMA、
GINLONG、MUST、TBB、STUDER



下载文档：
 User Manual

View full details
