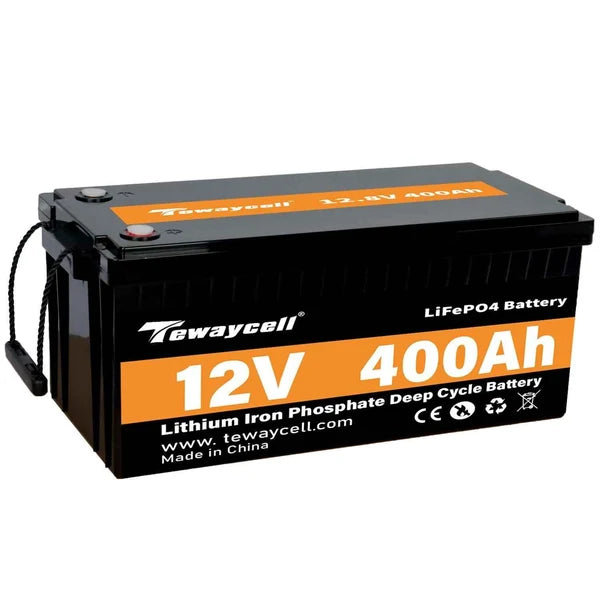

Tewaycell 12V 400AH LiFePO4 Battery Built-in Samrt BMS With Bluetooth
Tewaycell 12V 400AH LiFePO4 Battery Built-in Samrt BMS With Bluetooth
Regular price
€759,00
Regular price
Sale price
€759,00
Shipping calculated at checkout.
SKU:
Quantity
Couldn't load pickup availability
Free Shipping & TAX
Our current price is the final price, free shipping and tax, you don't need to pay any other fees.
Note 1：
Now only models shipped from China with active balancing module!
Description
| Nominal Capacity: | 400Ah |
| Usable Capacity: | 400Ah |
| Nominal Voltage: | 12.8V |
| Energy: | 5120Wh |
| Max.Continuous Load Power: | 5120W |
| Charge Voltage: | 14.6V |
| Charge Method: | CC/CV |
| Preferred Charger: | 14.6V60A |
| Standard Charge Current: | 60A |
| Max.Charge Current: | 200A |
| Discharge Cut-Off Voltage: | 10V |
| Standard Discharge Current: | 60A |
| Max.Continuous Discharge Current: | 200A |
| Max.Discharge Current (5 Seconds): | 400A |
| Cycle Life: | 4000~8000 times |
| Internal Impedance: | ≤25mΩ |

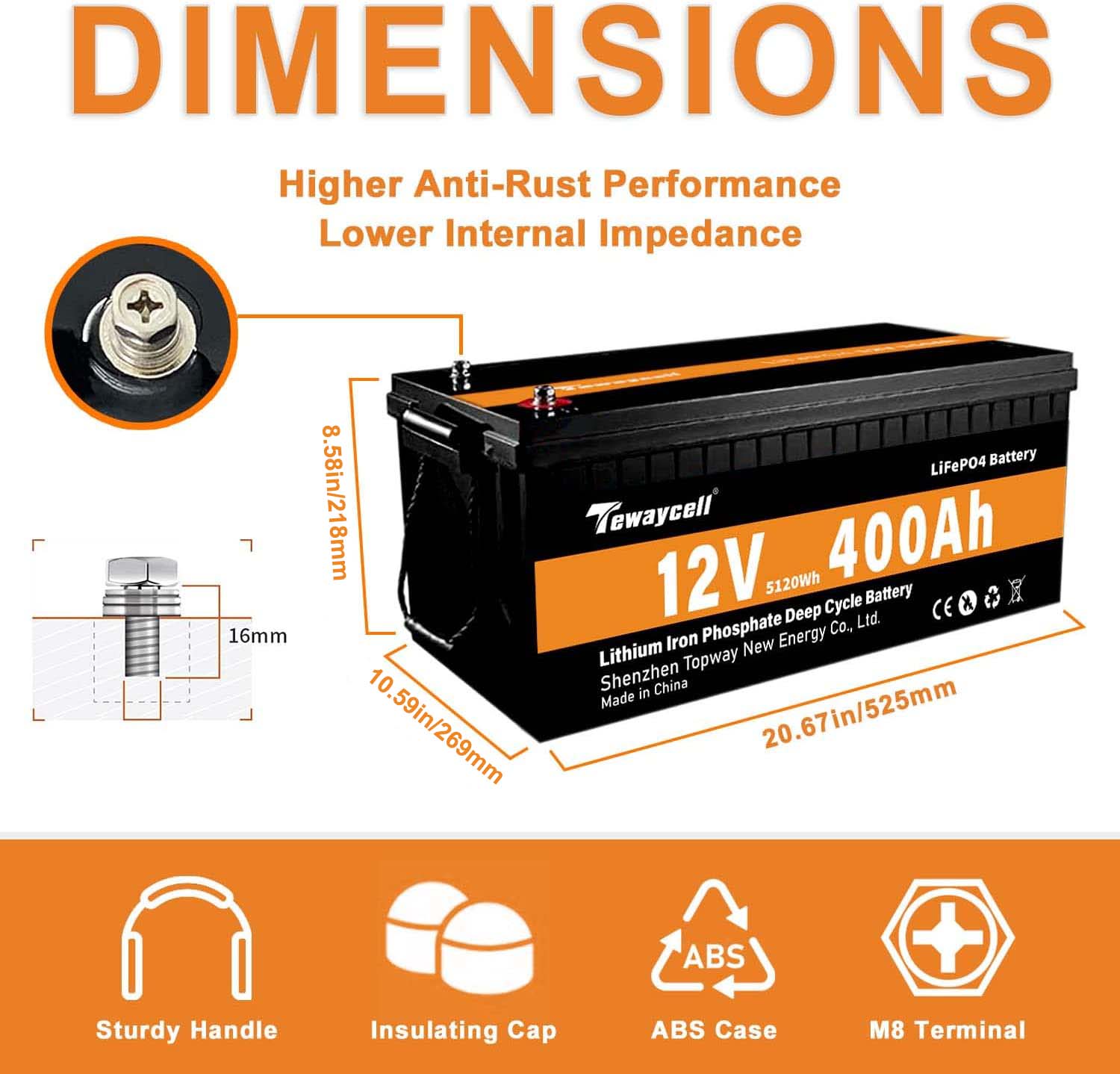

| Dimension (in): | 20.67*10.59*8.58in |
| Weight: Approx. | 59.08lb/26.8kg |
| Working Temp. Range(Charge): | 32℉-122℉/0℃～50℃(No Self-Heating) |
| Working Temp. Range(Discharge): | -4℉-140℉/-20℃～60℃(No Self-Heating) |
| Working Temp. Range(Charge): | -4°F-122°F/-20°C~50°C(Have Self-Heating) |
| Working Temp. Range(Discharge): | -4°F-140°F/-20°C~60°C(Have Self-Heating) |

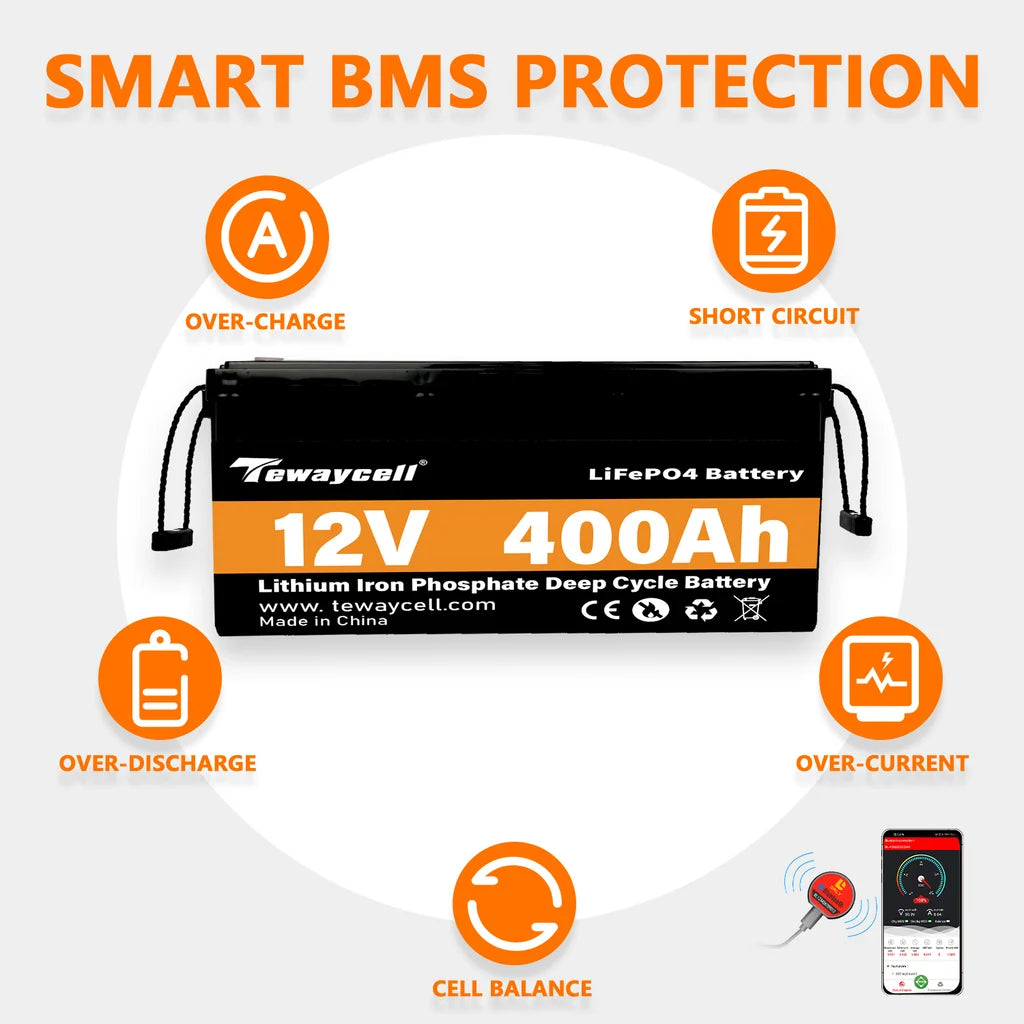

| Smart BMS | Have Bluetooth/No Bluetooth |
| Terminal Type: | M8 |
| Water Dust Resistance: | IP65 |
| Case Material: | ABS |
| CHARGING | |
| Charging Limit Voltage: | 14.6V |
| Over Voltage Disconnect: | 15.0V |
| Over Voltage Reconnect: | 14.2V |
| Balance Charging Voltage: | 14V |
| Float Charing Voltage: | 13.8V |
| Boost Charging Voltage: | 13.8V |
| Boost Reconnect Charing Voltage: | 13.2V |
| DISCHARGING | |
| Low Volatage Disconnect: | 10.8V |
| Low Voltage Reconnect: | 12.4V |
| Under Voltage Warning: | 11.6V |
| Under Voltage Warning Reconnect: | 12.0V |
| Discharging Limit Voltage: | 10.4V |
| Over Discharge Disconnect: | 10.4V |
| Over Discharge Reconnect: | 11.6V |
| Over Discharge Delay Time: | 0.8S |
