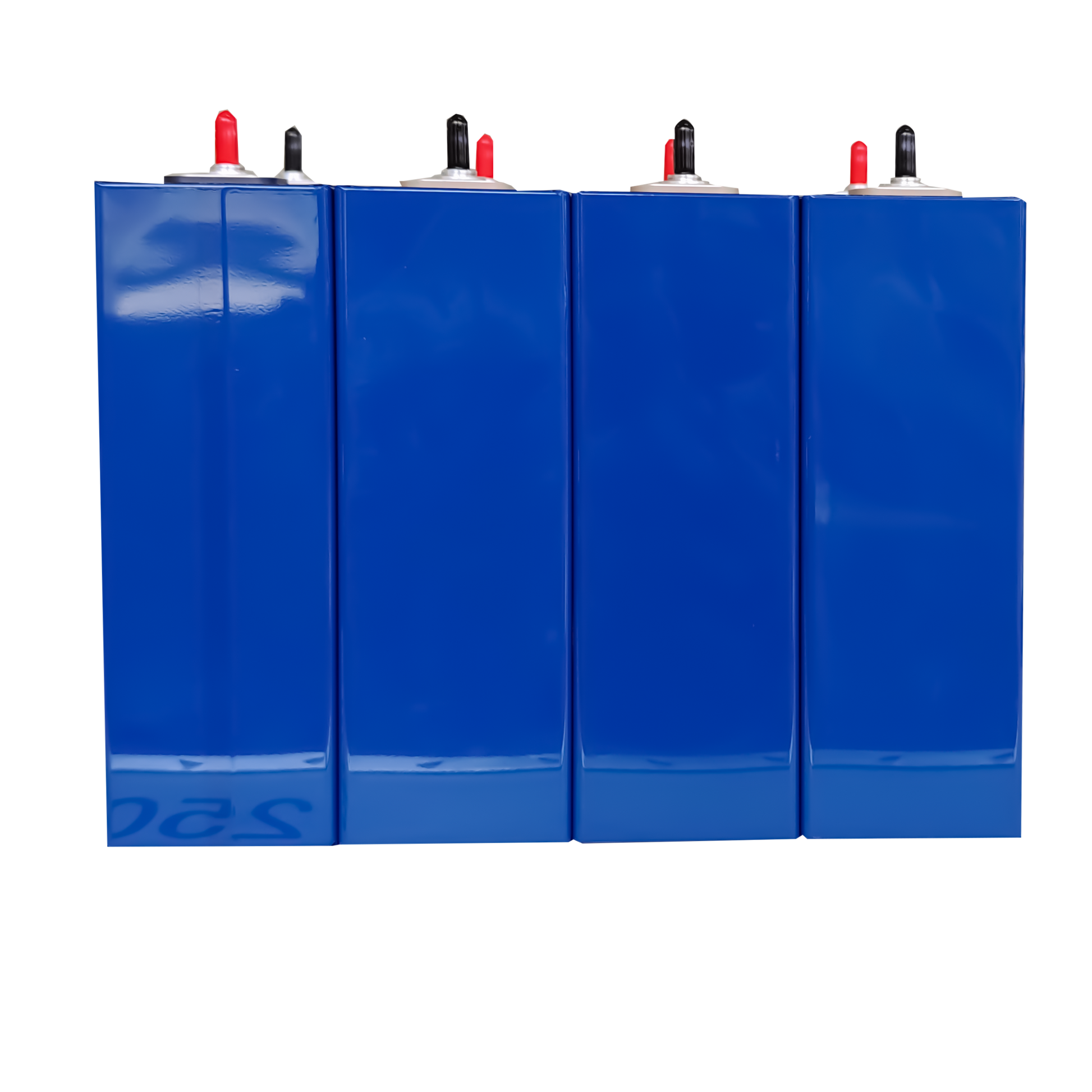

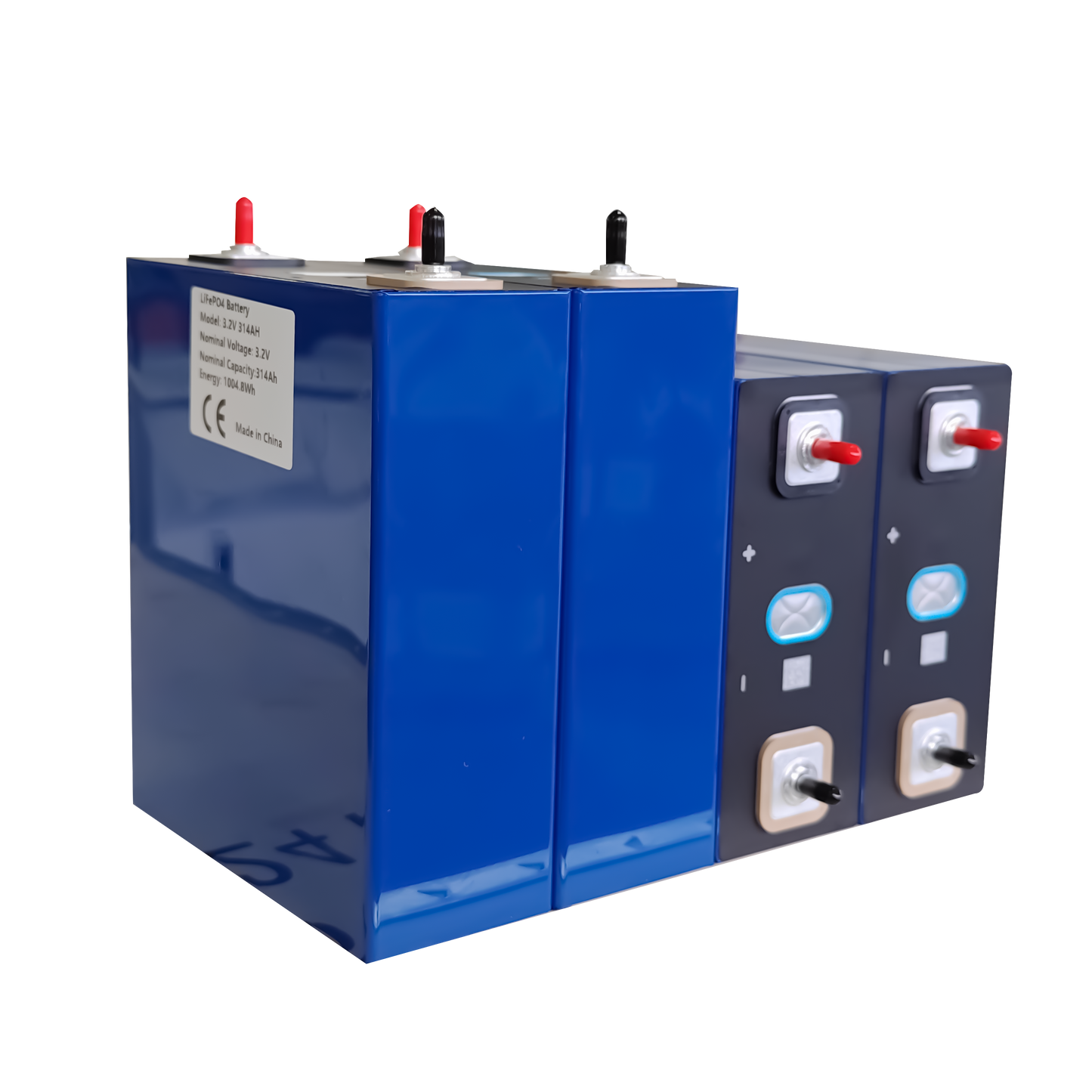

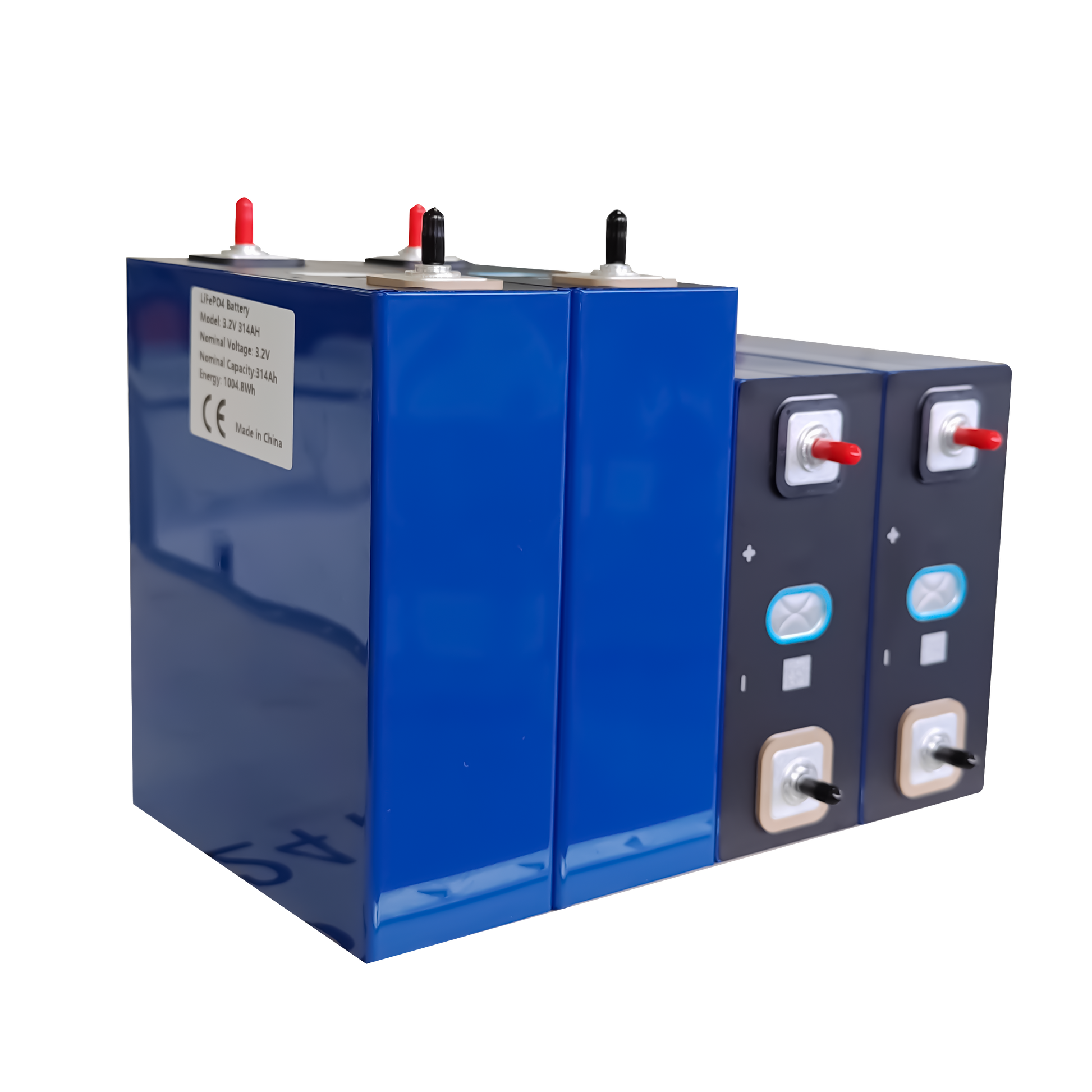

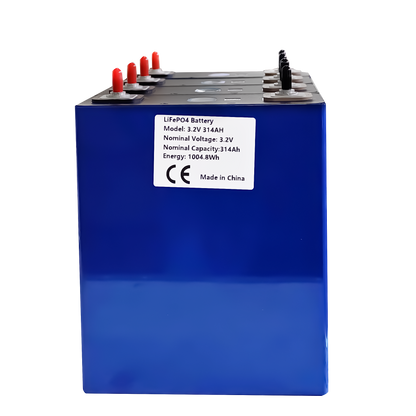

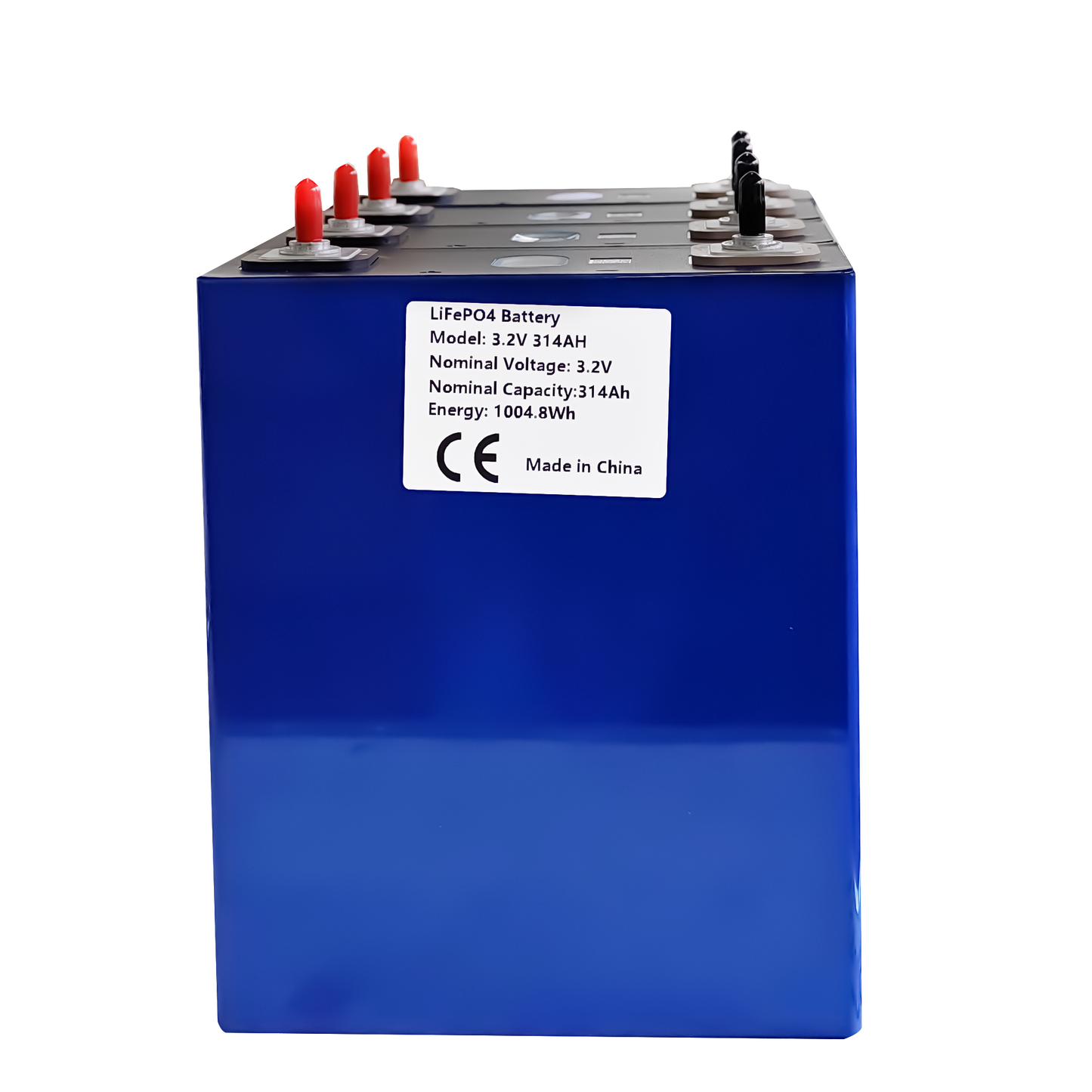

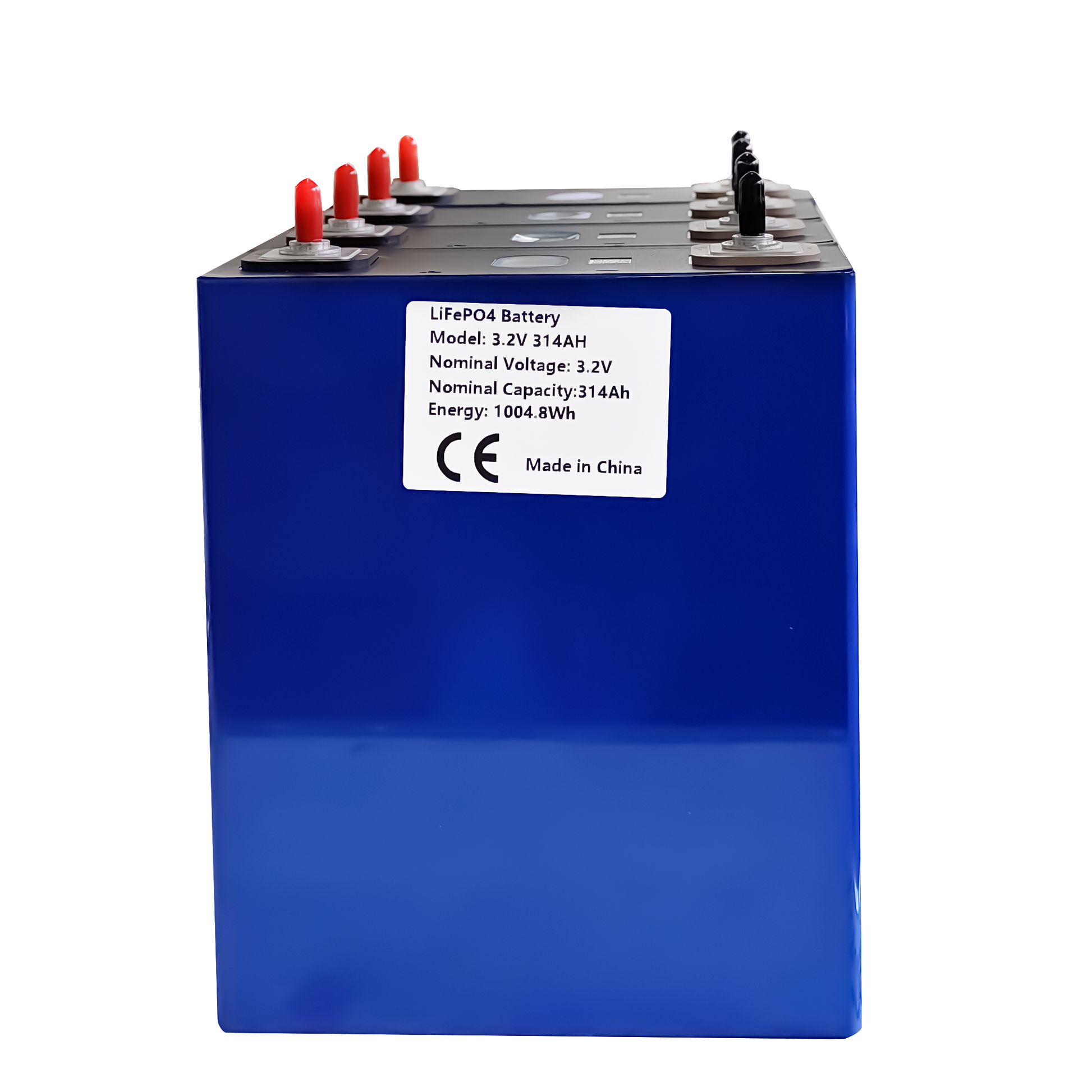

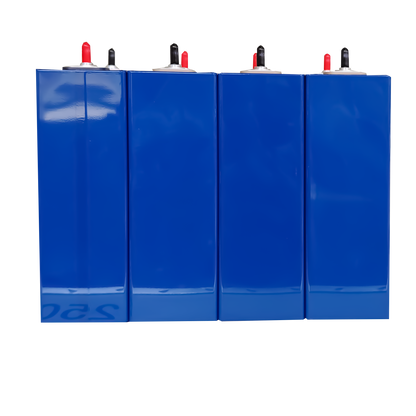

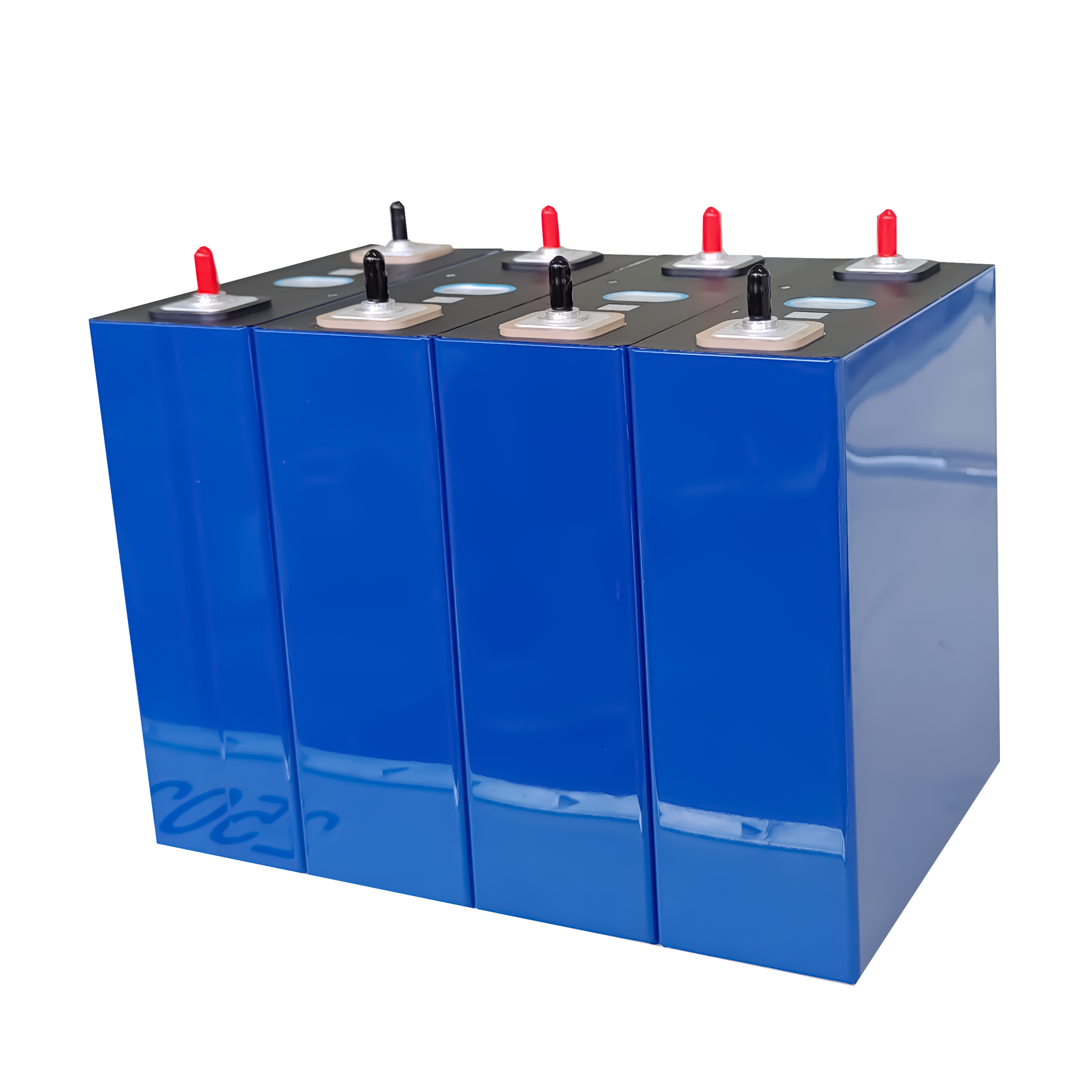

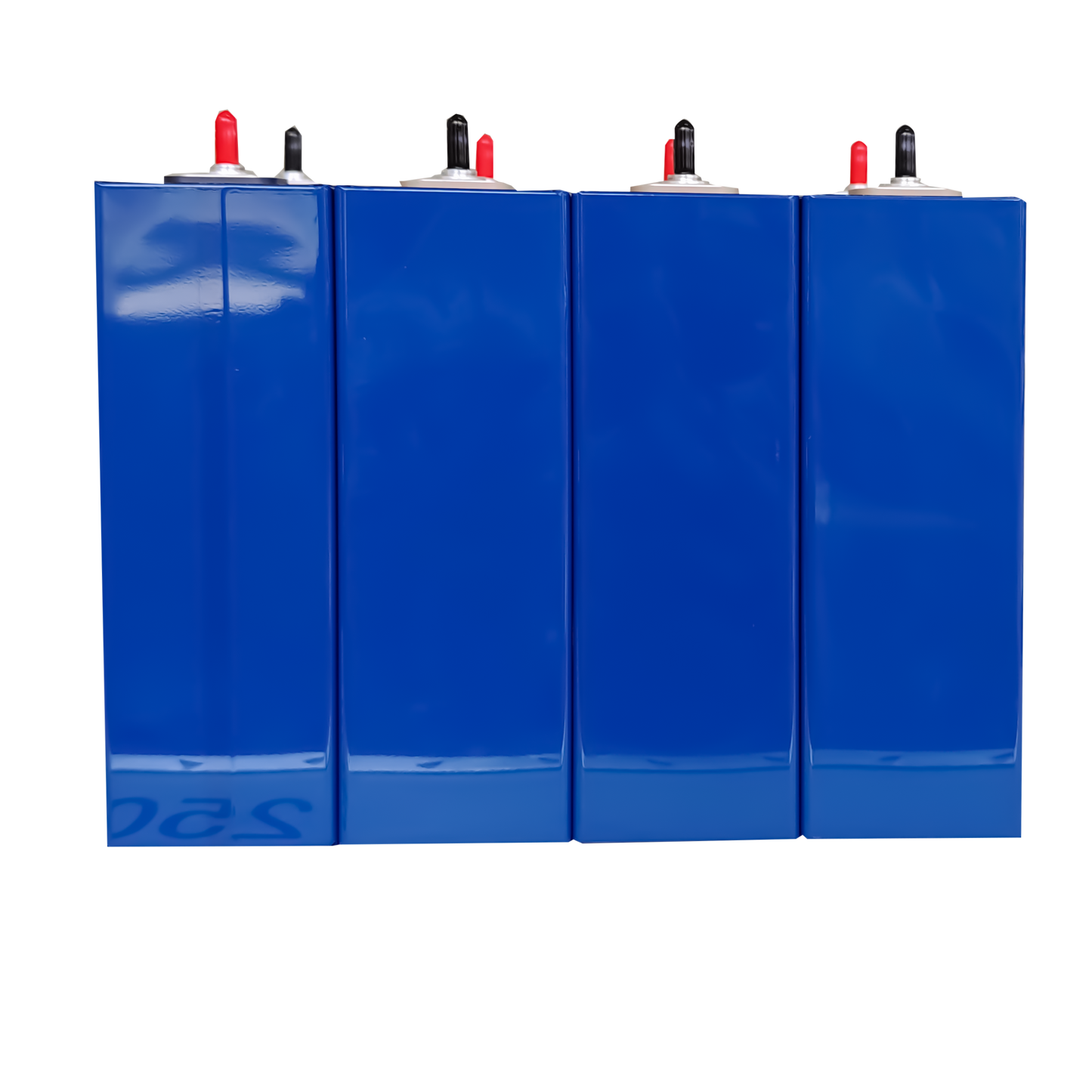

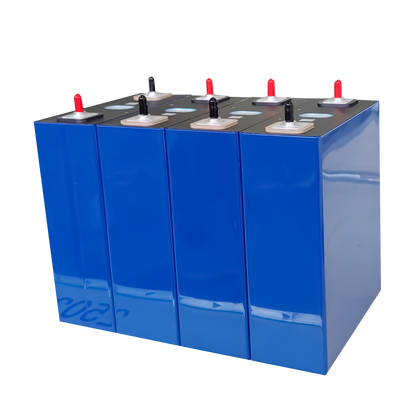

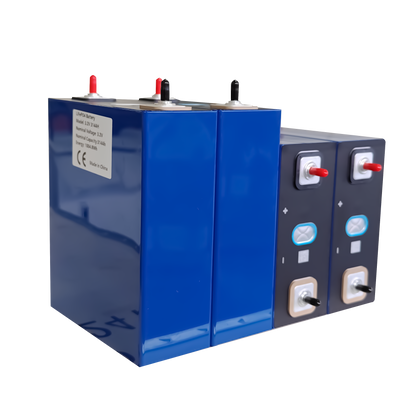

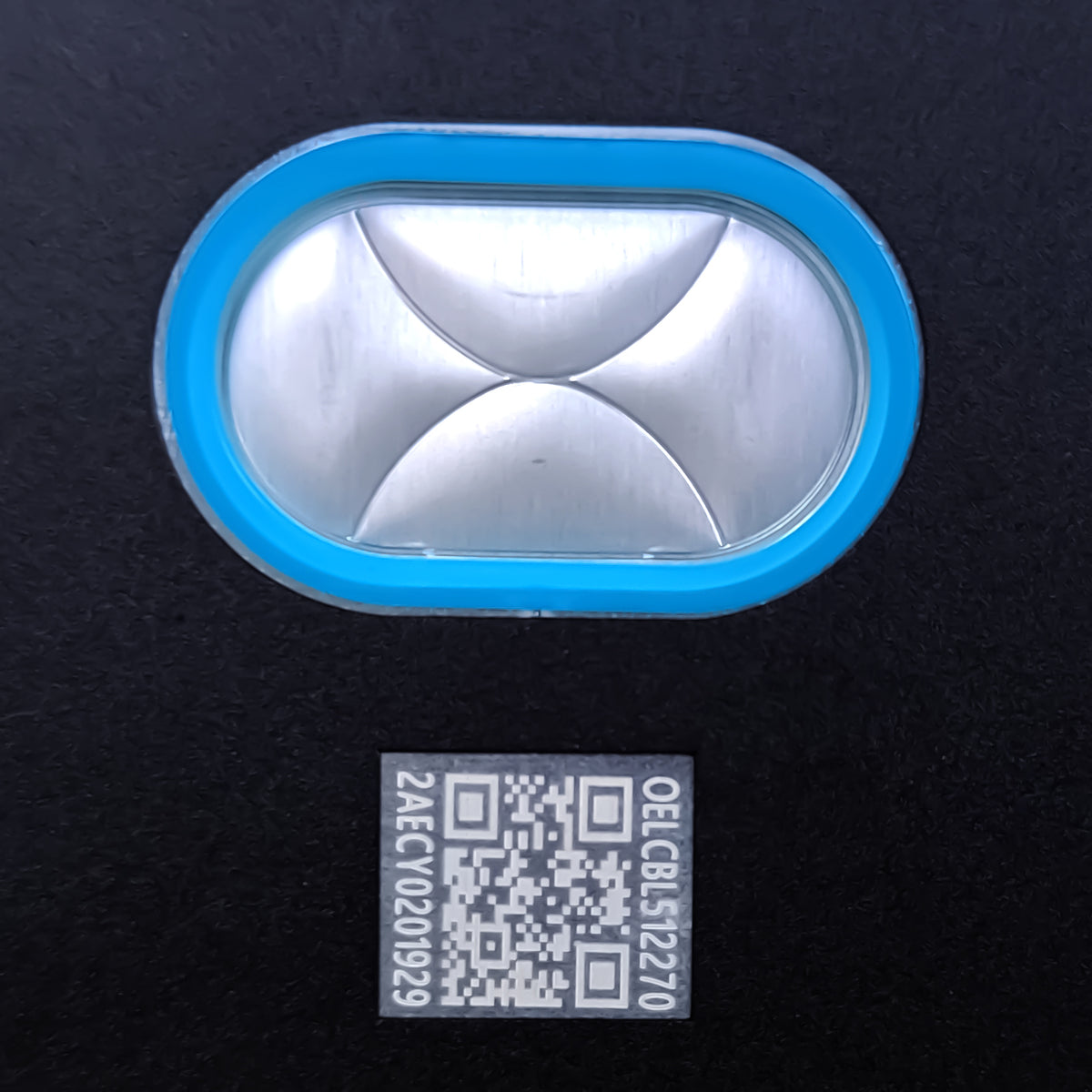

DEJIN 314Ah LiFePO4 Battery Cells - Brand New Grade A+ with QR Code

DEJIN 314Ah Specification：
Model: DEJIN 314Ah LiFePO4 Battery Cell
Battery brand: DEJIN
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5V – 3.65V
Nominal capacity: 314Ah
AC internal resistance: ≤0.25mΩ
Weight: 5.55±0.1kg

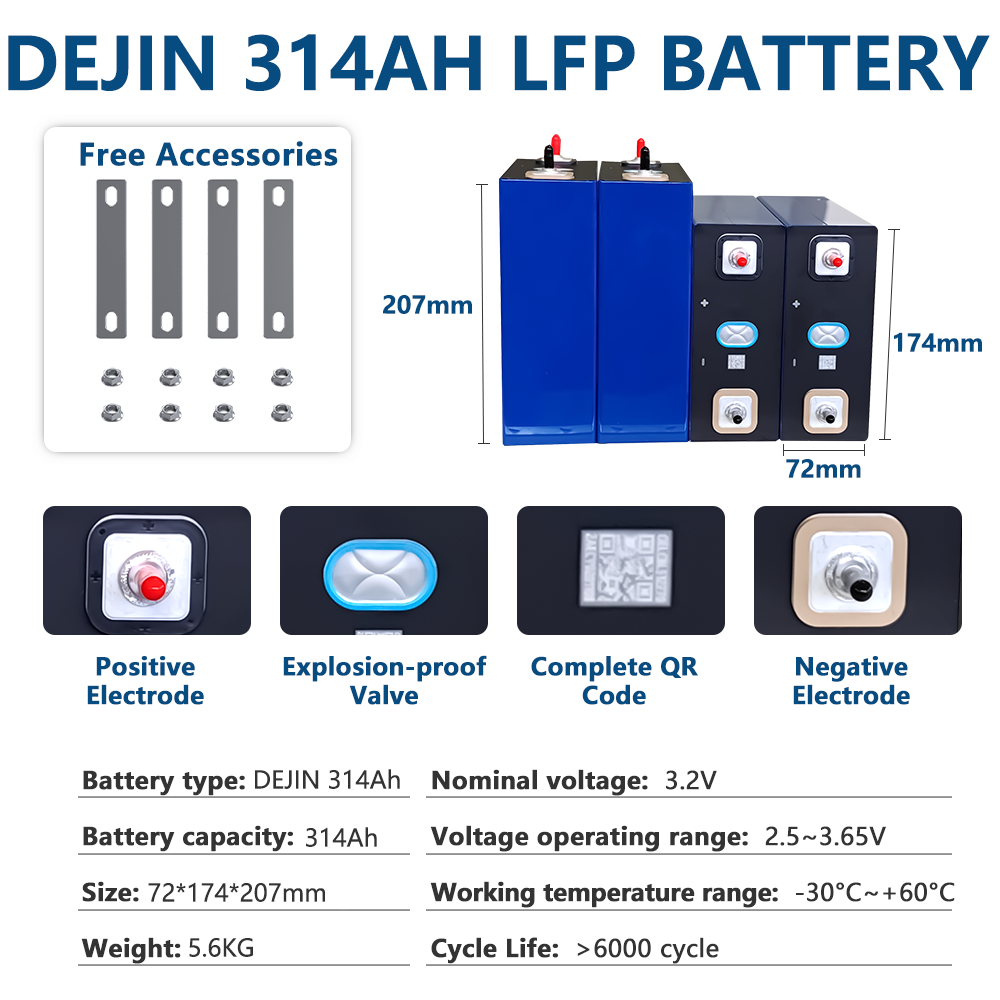

Dimensions (mm): 207(Pole included)*173*71±1
Terminal: M6 Laser Welding Screw Hole
Tightening torque of busbar nuts: 6N.M
Cycle life: ≥8000 cycles (0.5P/0.5P, DOD 90%, 25±2℃, 70%EOL)
Standard charge/discharge current: 0.5P/0.5P
Standard charge/discharge cut-off Voltage: 3.65V/2.5V
Residual capacity loss: Per month ≤3.5%
Cycle fading: ≤3%
Charging temperature: 0℃~55℃
Discharging temperature: -20℃~60℃

Download Document:
DEJIN 314Ah LiFePO4 电池规格.pdf
