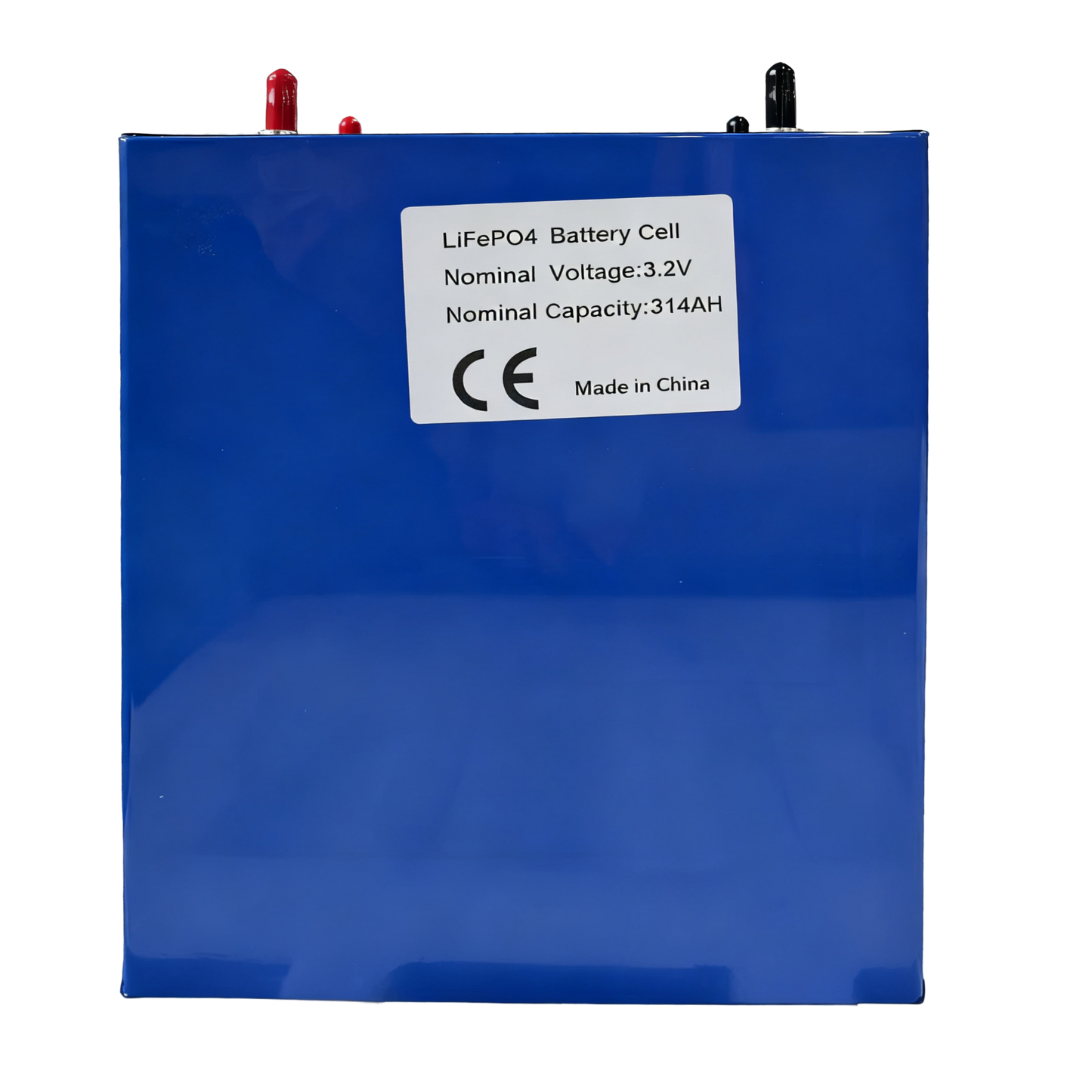

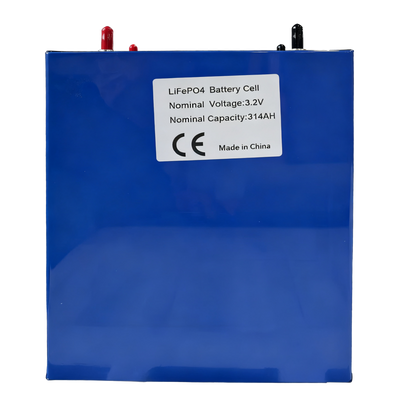

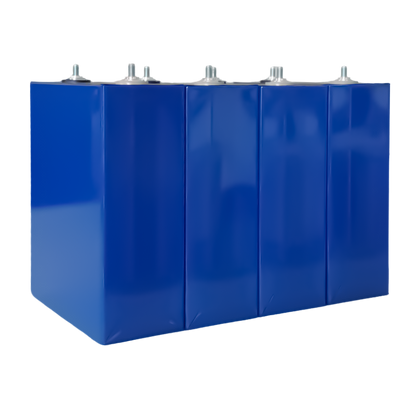

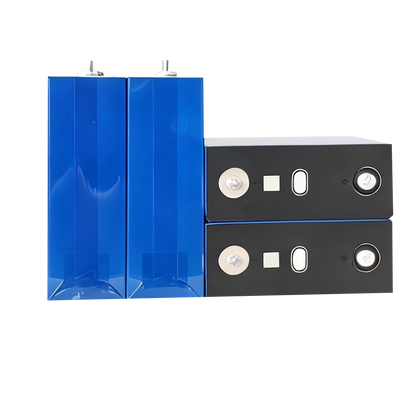

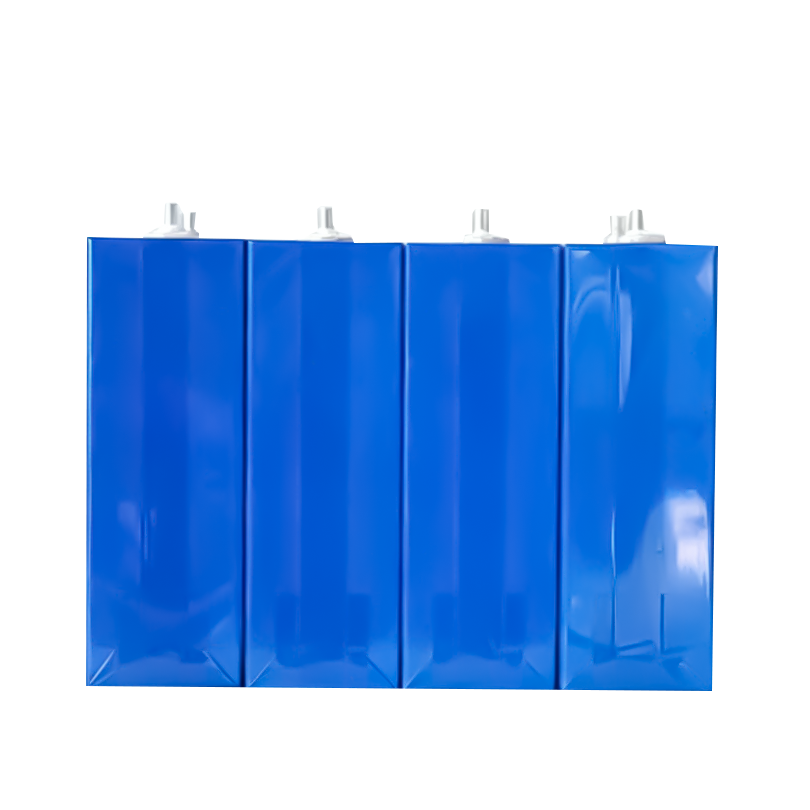

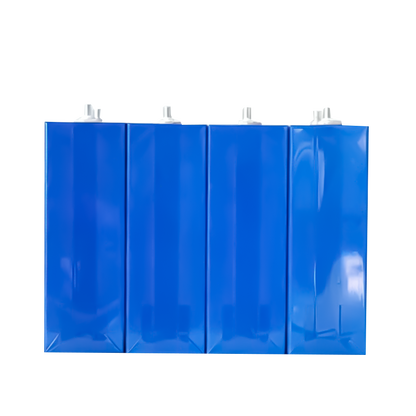

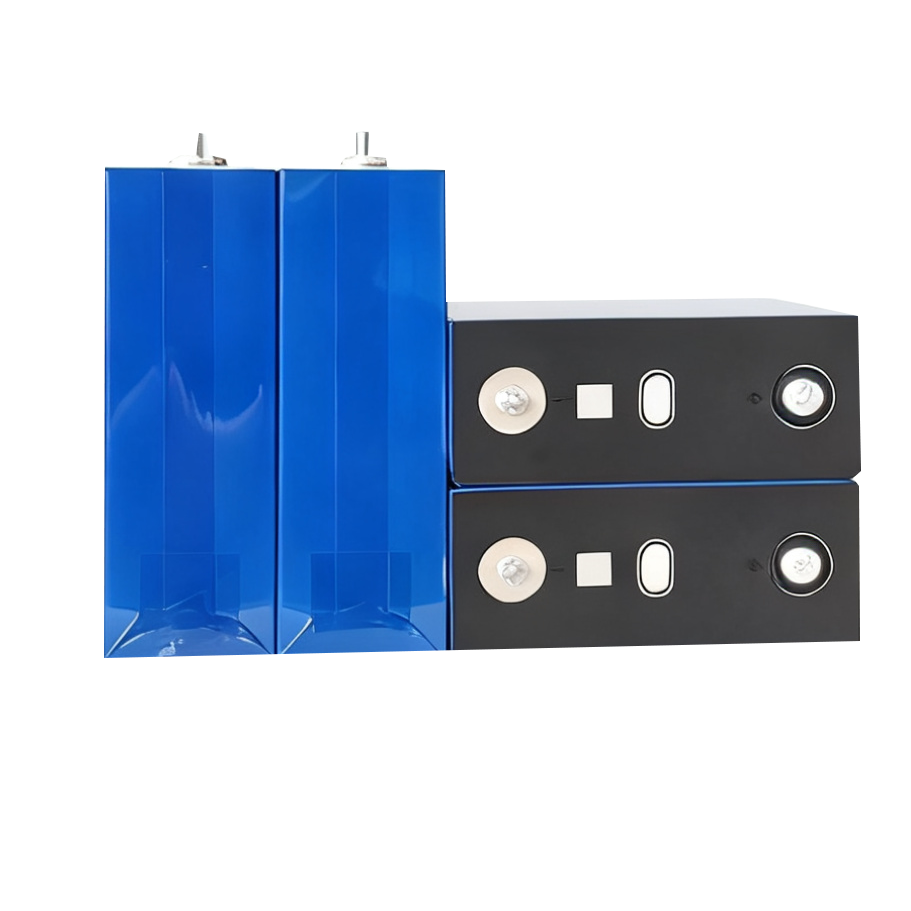

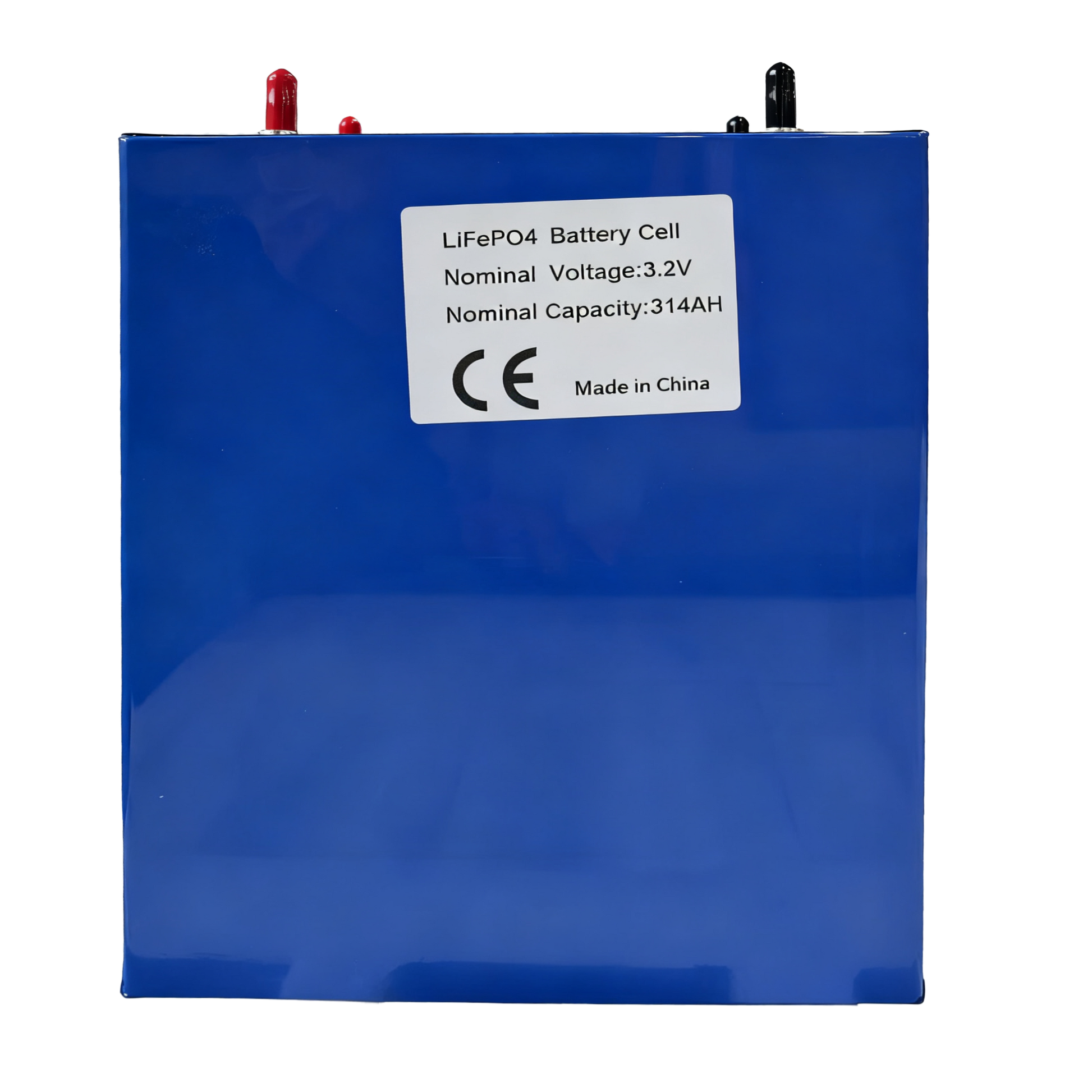

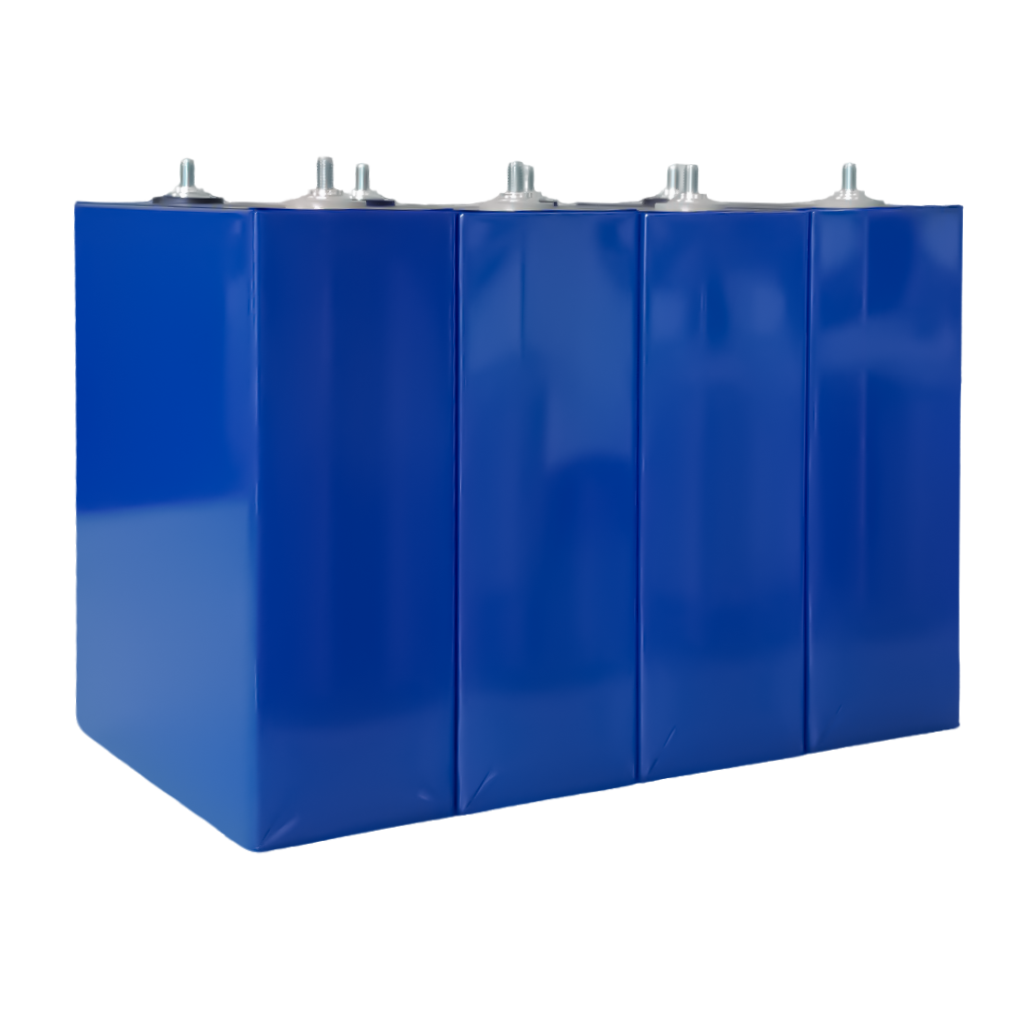

CORNEX 314Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code

CORNEX 314Ah Specification:
Battery brand: CORNEX
Battery model: CORNEX 314Ah
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: ≥314Ah
AC impedance resistance: ≤0.25mΩ
Weight: 5.4±0.2kg

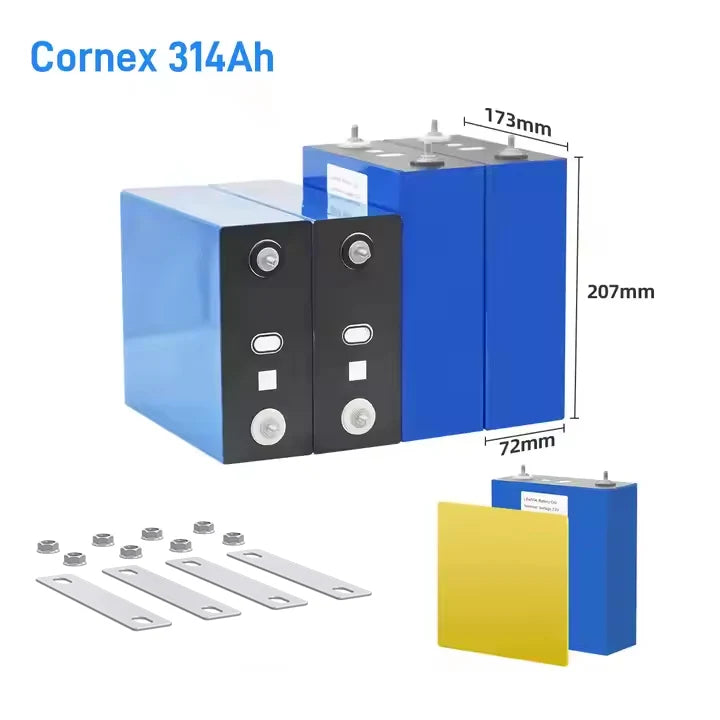

Dimensions (mm): 207.2*71.7*174±0.5
Terminal: M6
Tightening torque of busbar nuts: 6N.M
Cycle life: ≥6000 cycles (25℃±2℃，1P，2.5V-3.65V)
The charging ratio:1P
The discharge rate: 1P
Maximum charging temp.range: -10℃-55℃
Allowable discharging temp.range: -30℃-55℃
Optimal storage temperature range: 10℃-35℃

Download Document:
CORNEX 314AH LiFePO4 Cell Specification
