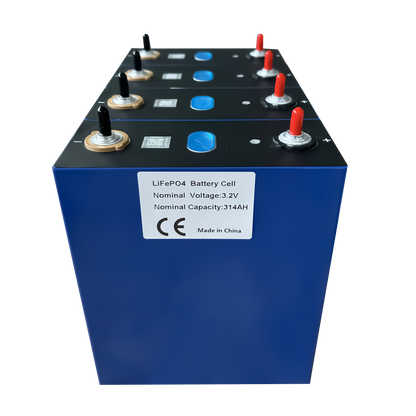

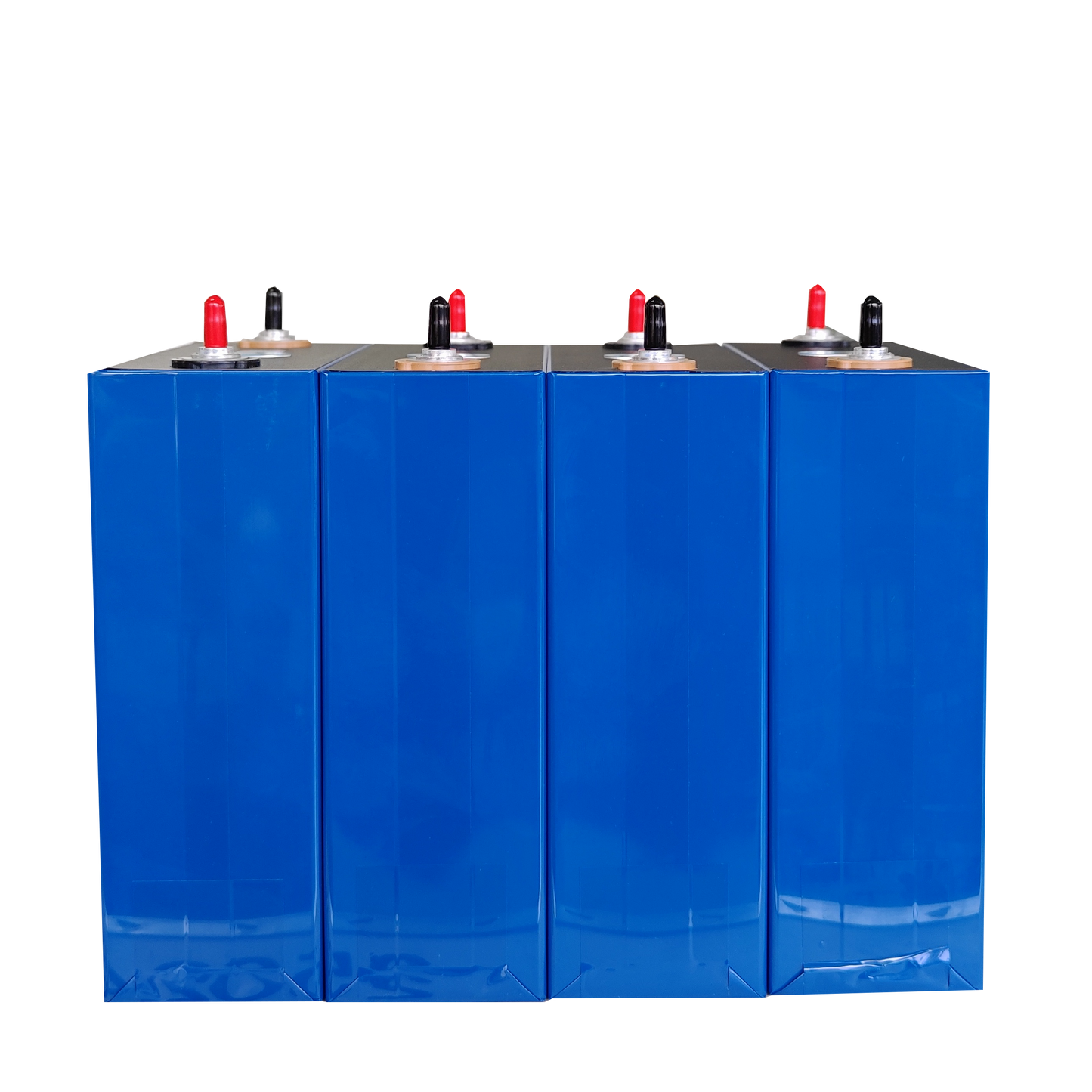

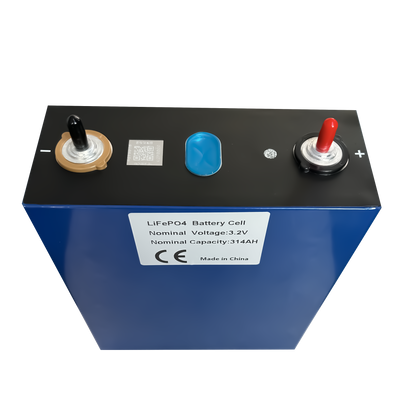

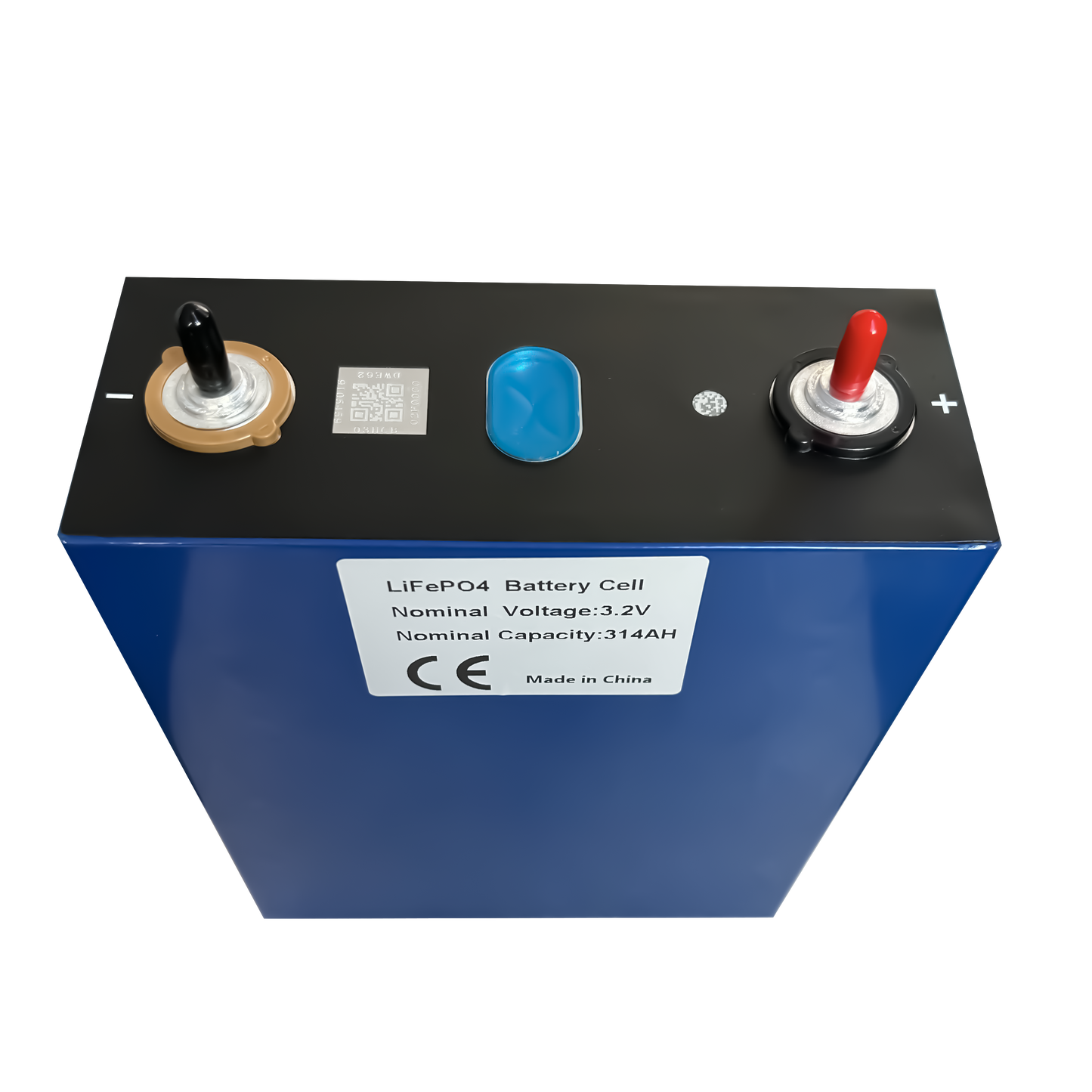

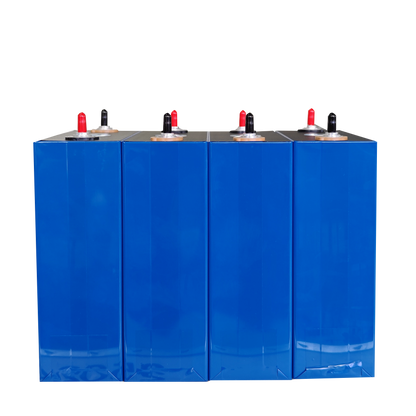

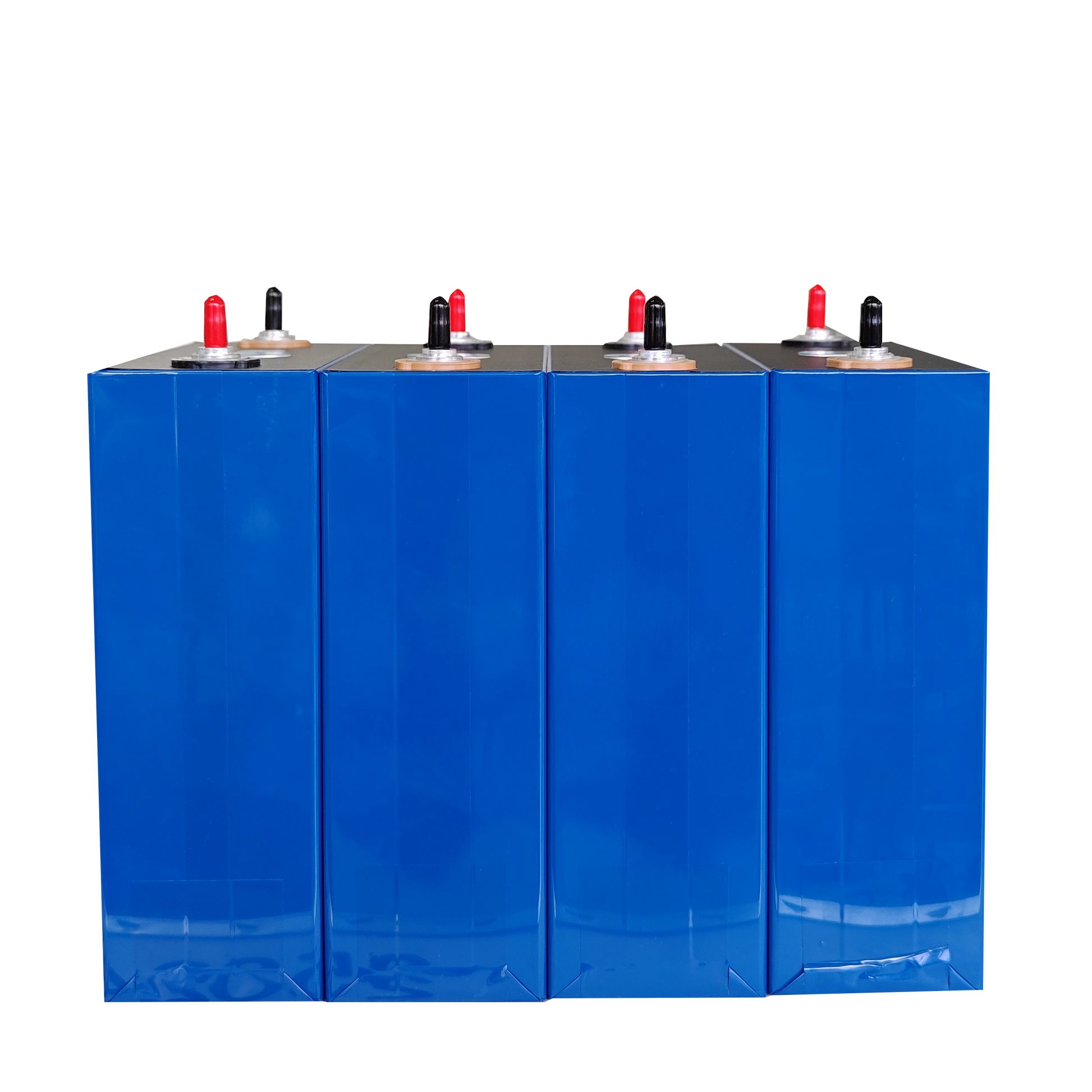

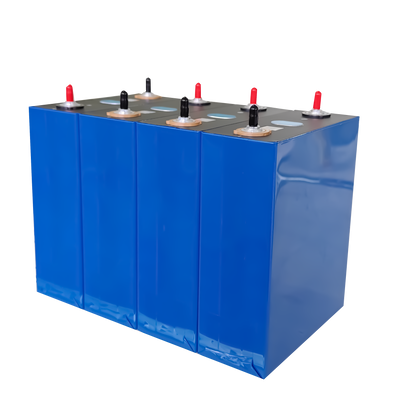

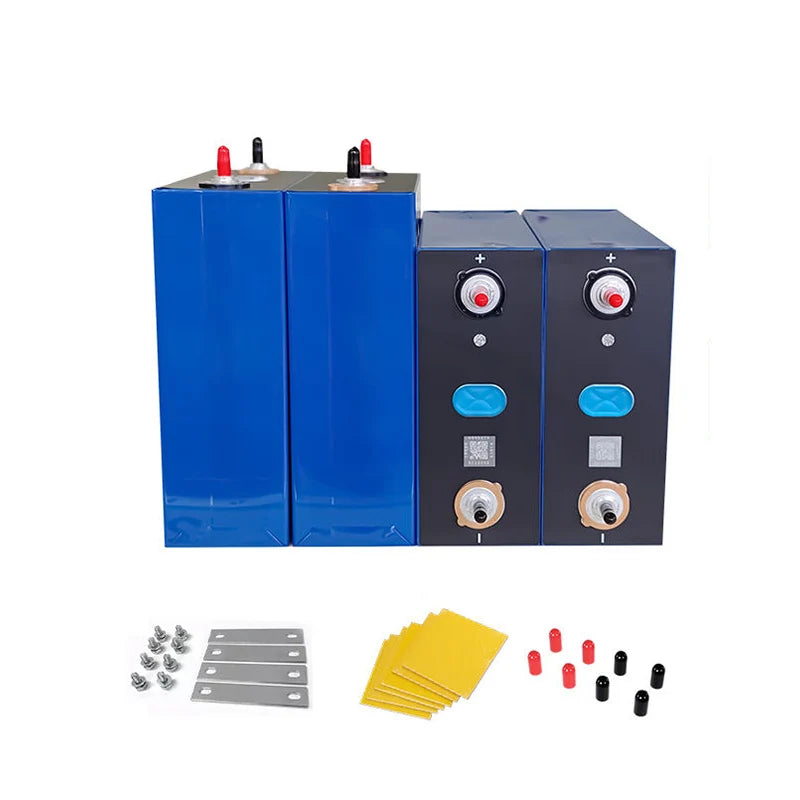

GOTION 314Ah 12000 Cycles LiFePO4 Battery Cells - Brand New Grade A with QR Code

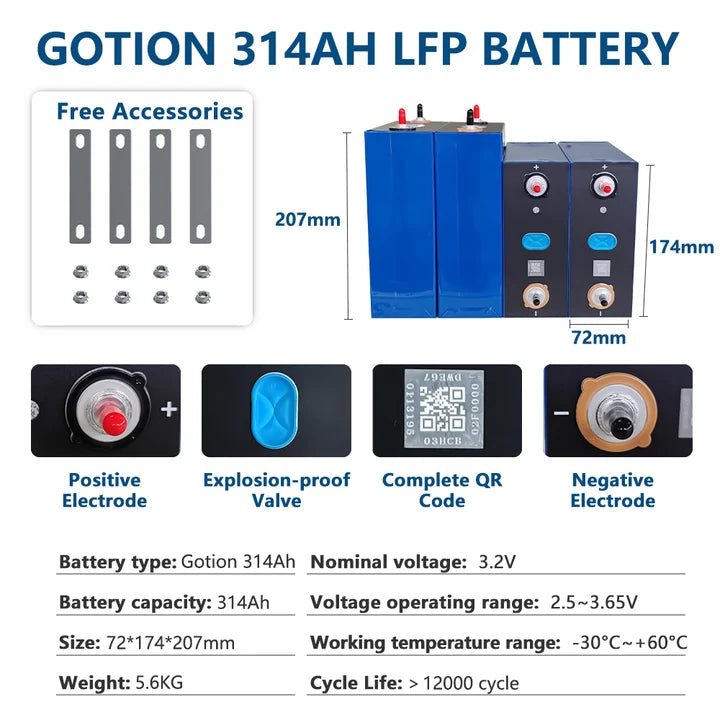

GOTION 314Ah Specification：
Model: GOTION 314Ah LiFePO4 Battery Cell
Battery brand: GOTION
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.0V – 3.65V
Nominal capacity: 314Ah
AC internal resistance: ≤0.5mΩ
DC internal resistance: ≤0.5mΩ
Weight: 5.63±0.2kg
Dimensions (mm): 207.1(Pole included)*174.8*71.95±1
Terminal: M6 Laser Welding Studs
Tightening torque of busbar nuts: 6N.M
Cycle life: ≥12000 cycles (0.5P/0.5P, DOD 90%, 25±2℃, 70%EOL)
Standard charge/discharge current: 0.5P/0.5P
Standard charge/discharge cut-off Voltage: 3.65V/2.5V
Max Continuous charge/discharge current: 1C/1C
Recommended SOC window: 10%～90%
Residual Capacity loss: Per month≤3.0%
Charging temperature: 0℃~55℃
Discharging temperature: -30℃~60℃

Download Document:
Specification GOTION 314Ah.pdf
