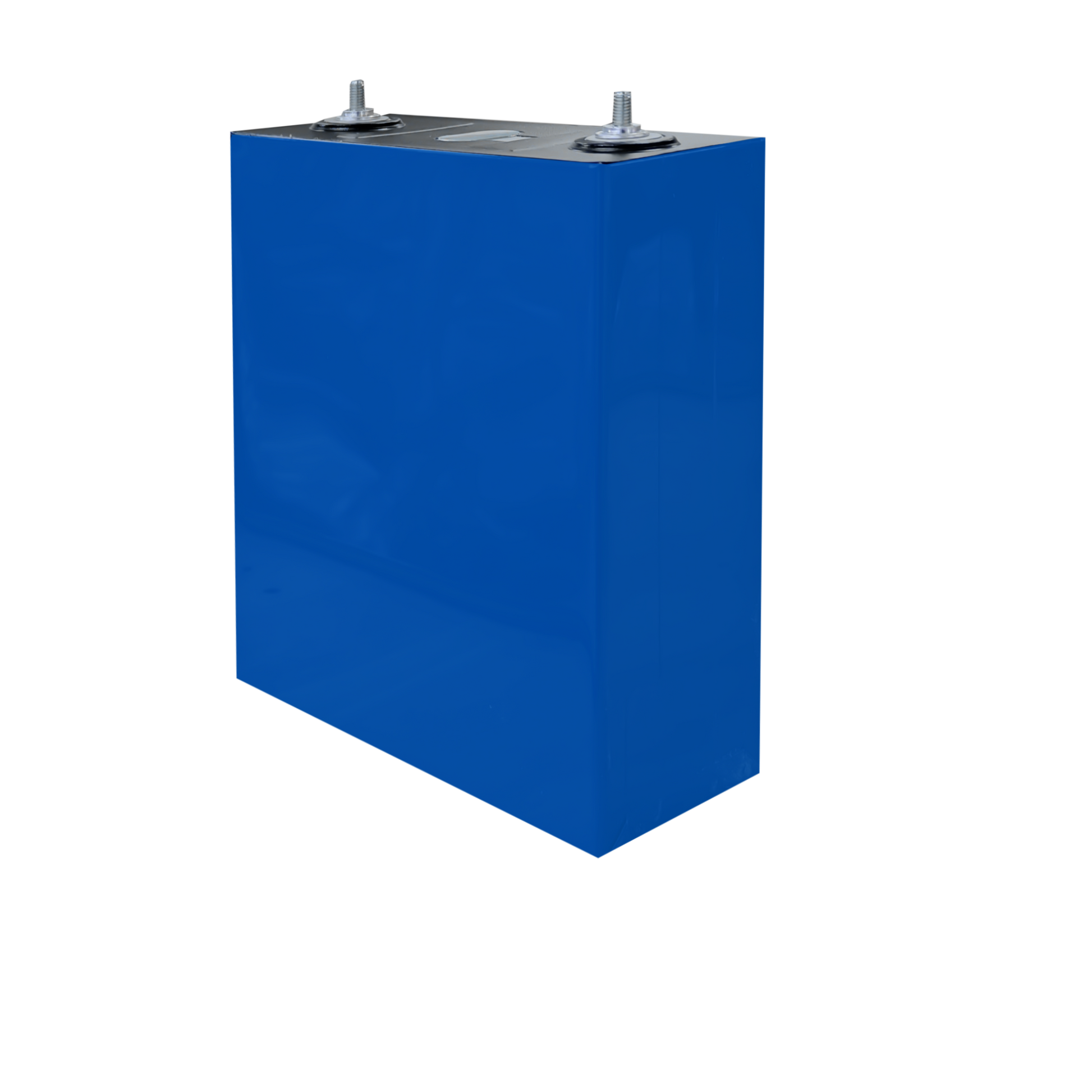

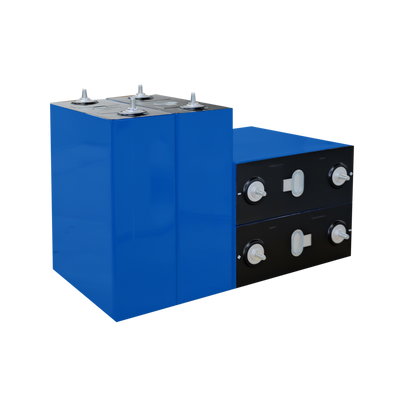

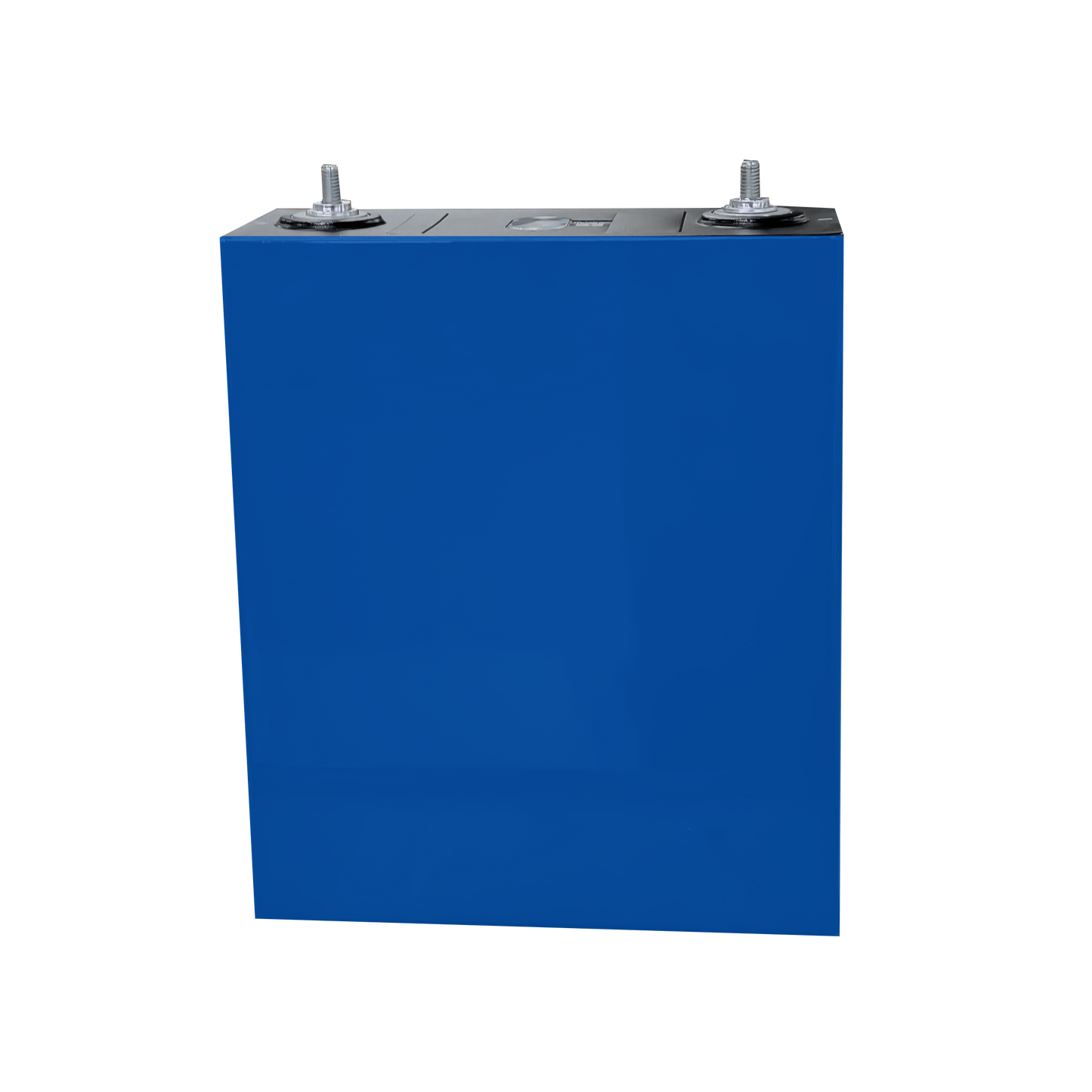

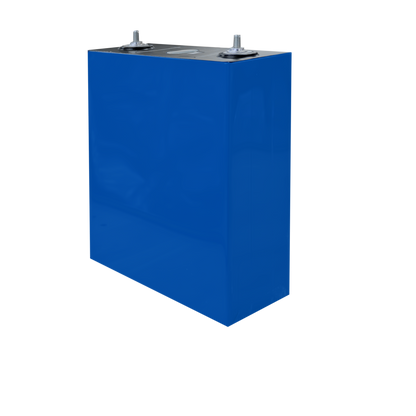

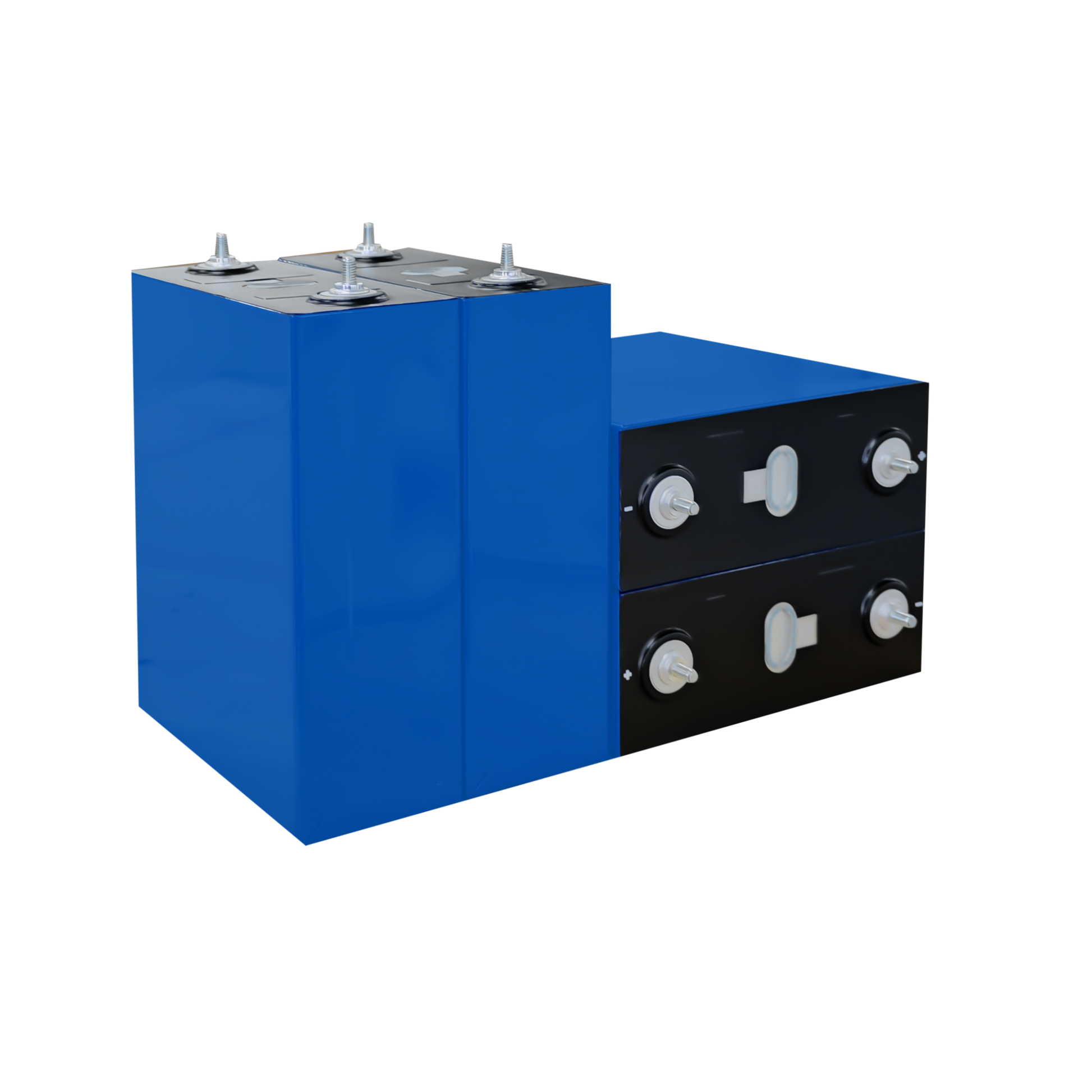

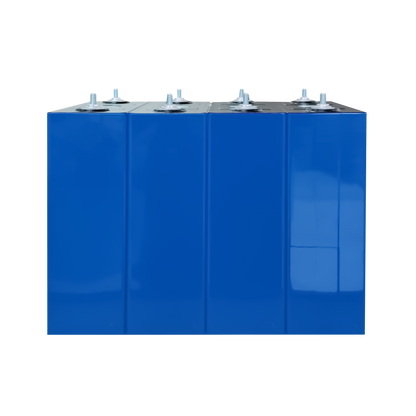

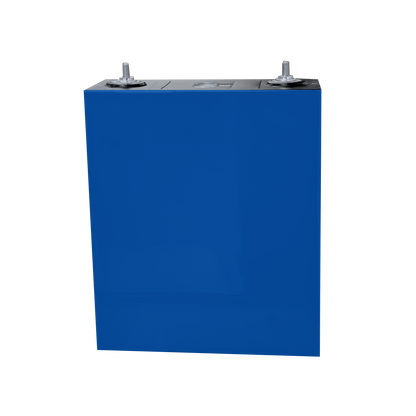

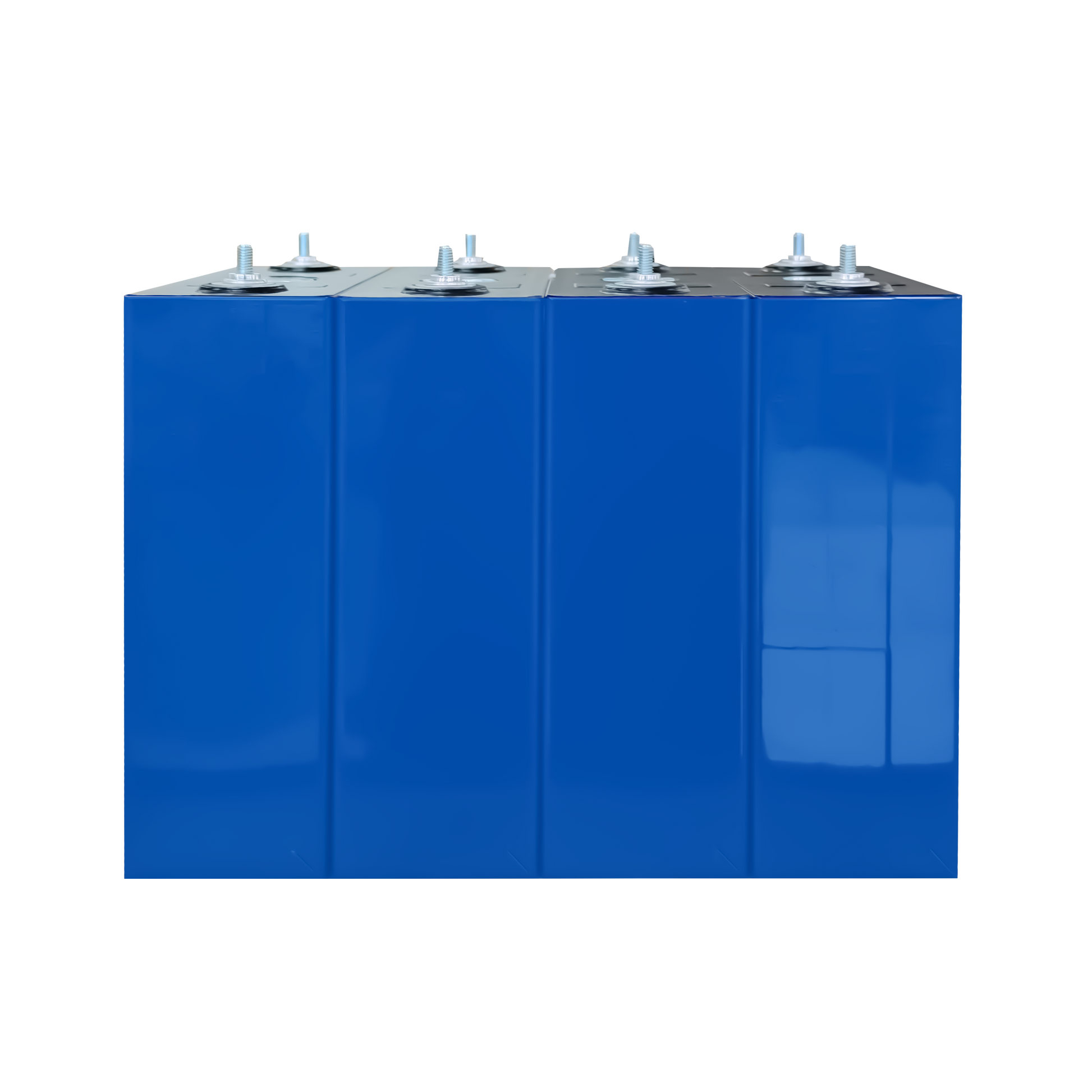

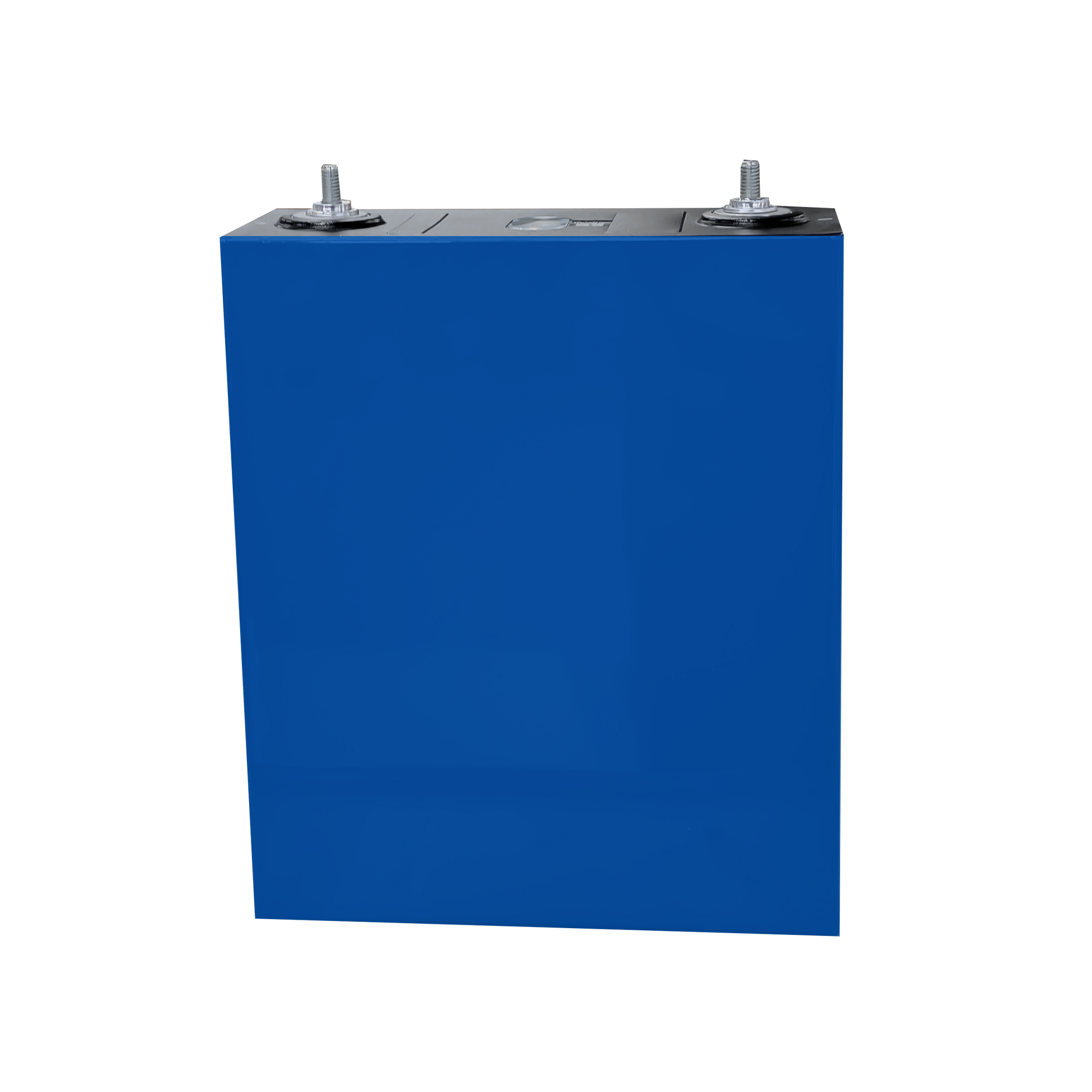

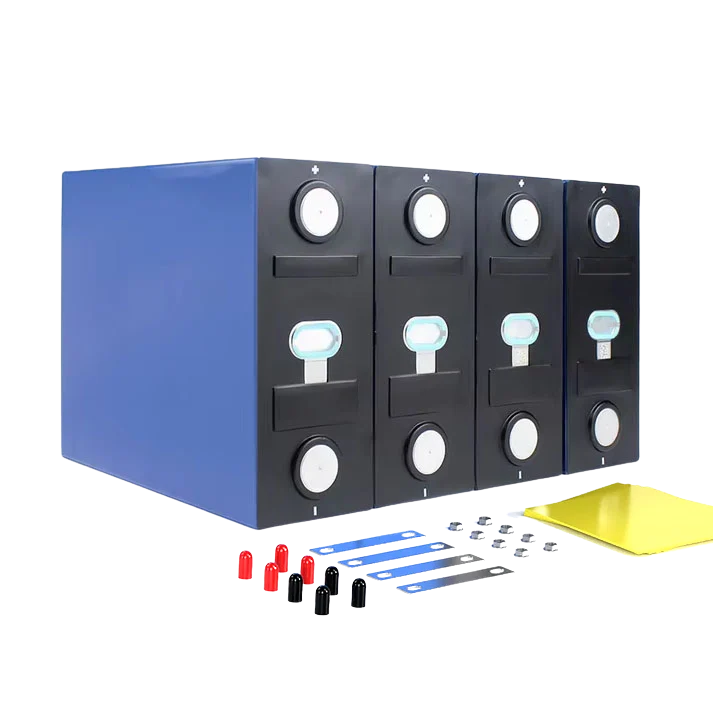

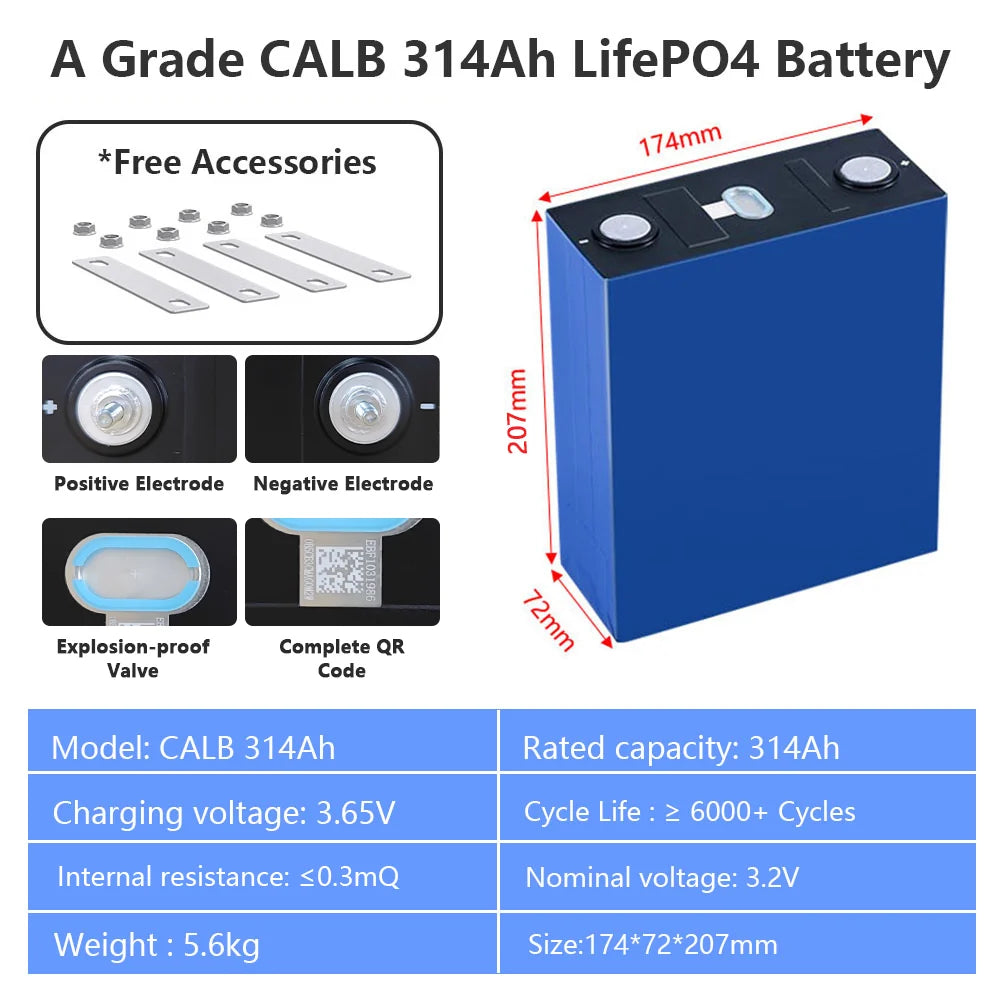

CALB 314Ah LiFePO4 Battery Cells - Brand New Grade A with QR Code

CALB 314Ah Specification:
Battery brand: CALB
Battery model: CALB L173F314A
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 314Ah
AC impedance resistance: ≤0.35mΩ
Weight: 5.6±0.2kg
Dimensions (mm): 207.0*71.4*174.4±0.8
Terminal: M6
Tightening torque of busbar nuts: 6N.M
Cycle life: ≥8000 cycles (25℃±2℃，0.5P，2.5V-3.65V)
The charging ratio:0.5P
The discharge rate: 0.5P
Charging temp.range: 0℃-55℃
Allowable discharging temp.range: -30℃-55℃
Optimal storage temperature range: -30℃-60℃

Download:

CALB 314AH LiFePO4 Cell Specification.pdf
